- LCD wide screen
- Resistive and capacitive touch screen
- Multi Video input
- Multi touch screen output
- Reduced thickness for greater ergonomics

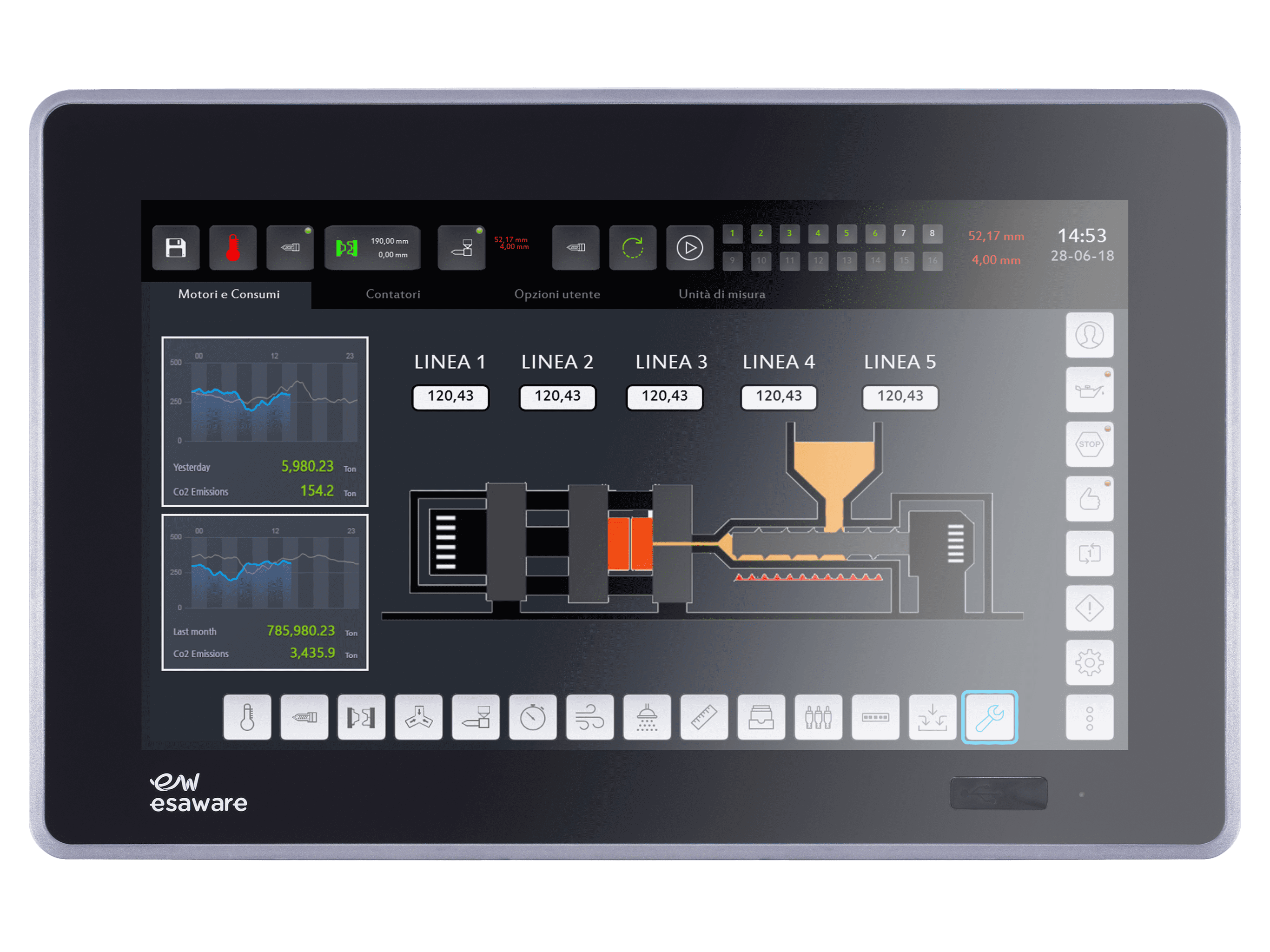

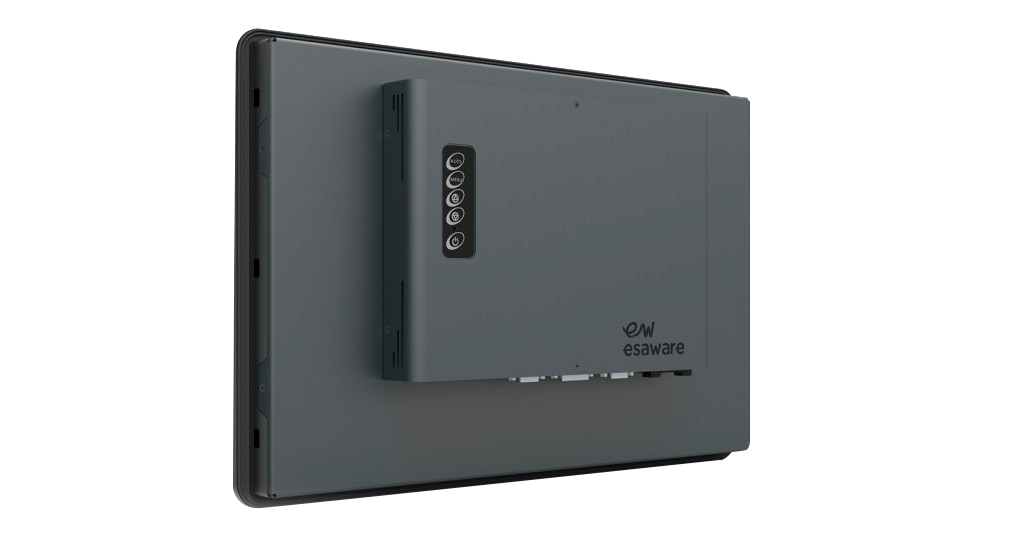

EW300 Industrial MonitorAesthetic and functional quality
This line of industrial monitor combines innovative and elegant design with the highest automation performances. Engineered according to the principles of Industry 4.0, they promote production efficiency through their responsiveness and ease of use.
EW300
EW315 | EW322 | |
---|---|---|
Display Size | 15,6" | 21,5" |
Display Technology | TFT | TFT |
Display Colors | 16,7 M | 16,7 M |
Display Backlight | LED | LED |
Display Brightness (cd/m²) | 300 | 300 |
Contrast (cd/m²) | 500:1 | 500: |
Viewing Angle (H-V) | 85/85/80/80 | 89 / 89 / 89 / 89 |
Display Resolution (pixel) | 1366x768 | 1920x1080 |
Backlight Life (hours) | 50 k | 50 k |
Bezel/Chassis | Aluminium - PTFE coating / Sheet Steel | Aluminium - PTFE coating / Sheet Steel |
Touch Technology | Resistive (5 wires)/ Capacitive (PCT) | Resistive (5 wires)/ Capacitive (PCT) |
USB | 1x USB 2.0 type A – rear 1x USB type B | 1x USB 2.0 type A – rear 1x USB type B |

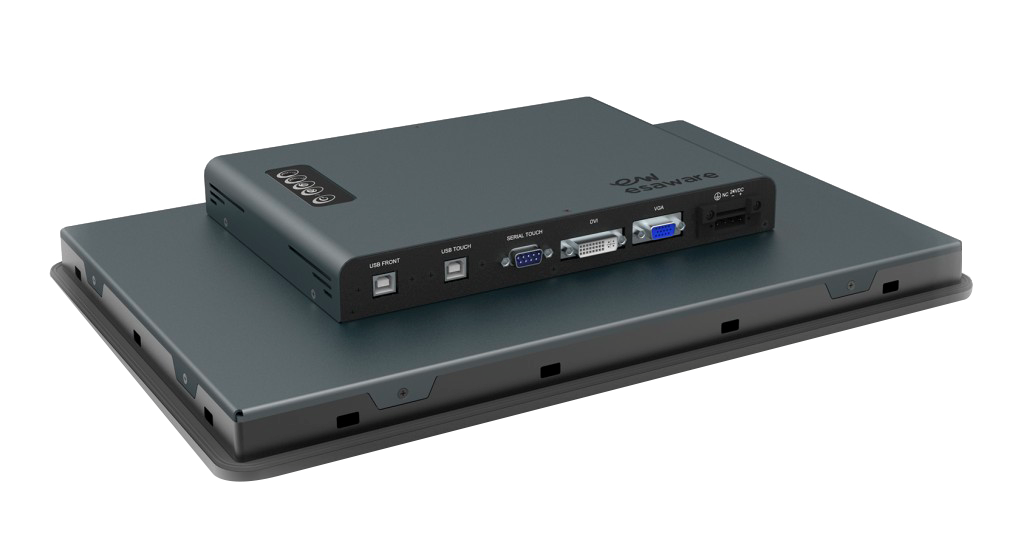

Rear touch outputs | 1x USB 2.0 type B + 1x RS232 sub-din 9pins | 1x USB 2.0 type B + 1x RS232 sub-din 9pins |
Video input | DVI+VGA | DVI+VGA |
Power Supply (Vdc) | 18...30 | 18...30 |
Consumption (W) | 20W | 30W |
Operating Temperature (°C) | 0 … + 50 | 0 … + 50 |
Storage Temperature (°C) | -20 … + 65 | -20 … + 65 |
Humidity | < 85% (non condensing) | < 85% (non condensing) |
External dimensions (mm) | 436,5x285,5x54,3 | 571,7x362,7x53,3 |
Cut-out dimensions (mm) | 422,5x271,5 | 554,5x345,5 |
Weight (kg) | 5 | 9,5 |
Protection Degree | IP66 front | IP66 front |
Certifications | CE EN61000-6-2 / EN61000-6-4 – ATEX – EN60068-2-6/27/30 | CE EN61000-6-2 / EN61000-6-4 – ATEX – EN60068-2-6/27/30 |
