VT HandHeldTutto il controllo nelle tue mani

Maneggevoli e portatili, i terminali hand-held di ESA sono una soluzione pensata per agevolare il lavoro dell’operatore.

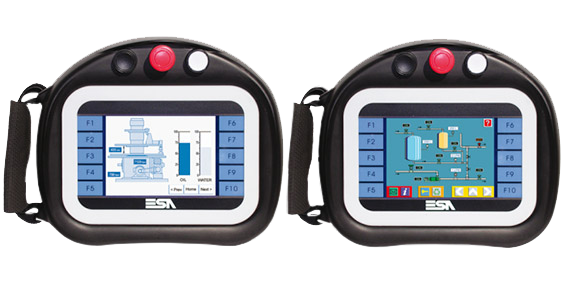

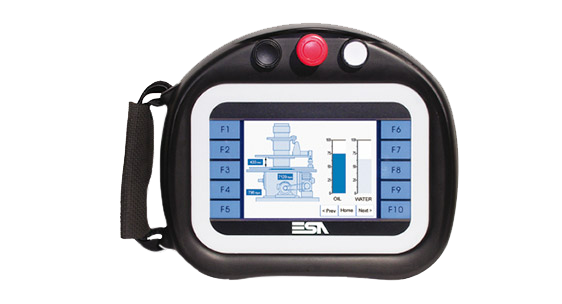

  • Versione VT505H con display 5,7” STN LCD, 4 livelli di blu, 16 righe per 40 caratteri (320 x 240), Touch-Screen, progetto 640 KB, orologio software, ricette 16 KB, cavo da 10 mt.

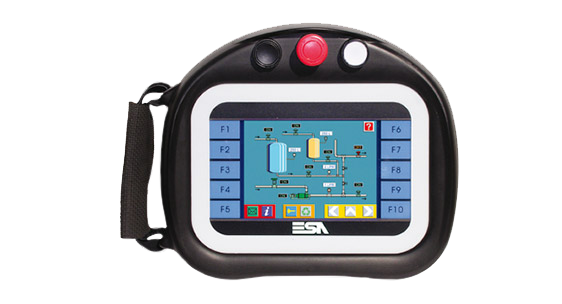

  • Versione VT525H con display 5,7” STN LCD, 16 colori, 16 righe per 40 caratteri (320 x 240), Touch-Screen, progetto 960 KB, orologio, ricette 32 KB, cavo da 10 mt.
  • +150 protocolli di comunicazione per PLC, inverte, termoregolatori e altri dispositivi
  • Collegamenti fieldbus a MPI e CANopen (solo VT505H)
  • Fino a 150 pagine con help, 1500 variabili
  • Multi lingua, inclusi i caratteri orientali e cirillici
  • Gestione delle ricette, allarmi, 10 livelli di password
  • Oggetti grafici in movimento
  • Software di programmazione in 6 lingue
  • Collegamento alla stampante seriale
  • 10 tasti funzione
  • Pulsante “presenza operatore” a 3 vie
  • Pulsante di start e stop (spia accesa su “start”)
  • Protezione IP65

VT Hand Held

Scarica pdf

 VT505HVT525H
TypeGraphic LCD 4 tones of blue STNGraphic LCD 16 color STN
BacklightingCCFLCCFL
Resolution in pixels h-v (inches)320 x 240 (5,7”)320 x 240 (5,7”)
Min. lamp life at 25°C (hours)45 K50 K
Touch Screen Matrix (cell dimension in pixels h-v)20 x 16 (16x15)20 x 16 (16x15)
Display area size (mm h-v)115,2 x 86,37115,2 x 86,37
Columns by Rows/Character dimensionsDepending on used FontDepending on used Font
Contrast adjustmentSoftwareSoftware
Character setProgrammable fonts/TTF Windows® (also Unicode)Programmable fonts/TTF Windows® (also Unicode)
Project memory (text+graphic) (bytes)640K960K
Recipes/Alarm buffer (bytes)16K/- FLASH32K/8K FLASH
MSP serial portRS-232/422/485/TTY 20 mA - on VTHCB (excluded CAN version)RS-232/422/485/TTY 20 mA - on VTHCB (excluded CAN version)
ASP serial port-RS-232 - on VTHCB (excluded CAN version)
Integrated (option)CAN-
Optional--
ESA-Net (variables)ClientClient
External (W x H x D) (mm)251 x 222 x 221250 x 222 x 221
Cut-out (W x H) (mm)--
Power supply/Power consumed (24 Vdc)18...32 Vdc/10 W18...32 Vdc/10 W
Protection levelIP 65 on all sidesIP 65 on all sides
Operating temperature (°C)0...+500...+50
Storage/transport temperature (°C)-20...+60-20...+60
Humidity<85%(non condensing)<85%(non condensing)
Weight (kg)33
Project Languages46
Password levels/Bit passwords10/810/8
Pages/Fields per page128/34150/48
Format of variablesDEC, HEX, BIN, BCD, ASCII, Floating pointDEC, HEX, BIN, BCD, ASCII, Floating point
Dynamic texts/Lists of imagesValue depends on dimensions of project memoryValue depends on dimensions of project memory
ISA alarms/Info-messages-/256256/256
Help messages (pages/info messages/alarms)128/256/-150/256/256
Alarm history buffer-220
Recipes (Number/Variables per recipe)128/256128/256
Macros (Number/Commands per macro)1024/161024/16
Print pages (Total/Number of fields per page)-64/128
Automatic operations/Timers/Equations32/32/3232/32/32
Max bargraphs per page (taken together with fields)3448
Project imagesBMP, JPEG, TIFF, PSD, WMF, PNG, EPS, ECC...BMP, JPEG, TIFF, PSD, WMF, PNG, EPS, ECC...
Buttons per pageNumber of buttons corresponding to the number of Touch-Screen cellsNumber of buttons corresponding to the number of Touch-Screen cells
Hardware clock-Supercapacitor 72 hours
Function keys1010
CertificationsCE/cULusCE/cULus

CODICI DI ORDINAZIONE

CODESDESCRIPTION
VT505H00000MSP (RS232/422/485/TTY). Only with VTHCB000000
VT505H000CNMSP (RS232/422/485/TTY), CAN interface, without VTHCB000000
VT525H00000MSP (RS232/422/485/TTY), ASP (RS232/485). Only with VTHCB000000
VTHCB000000Hand held connection box MSP/ASP
