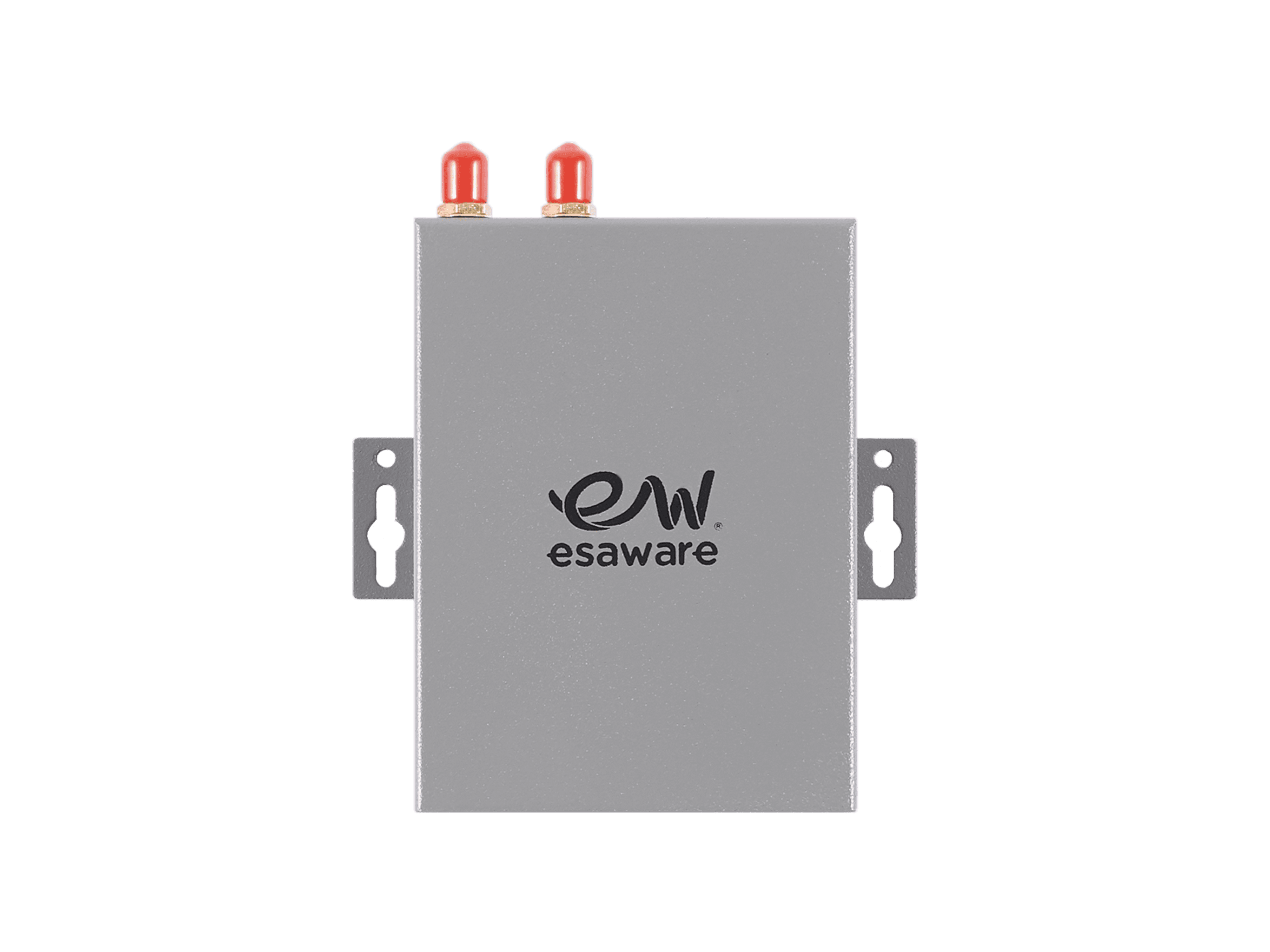

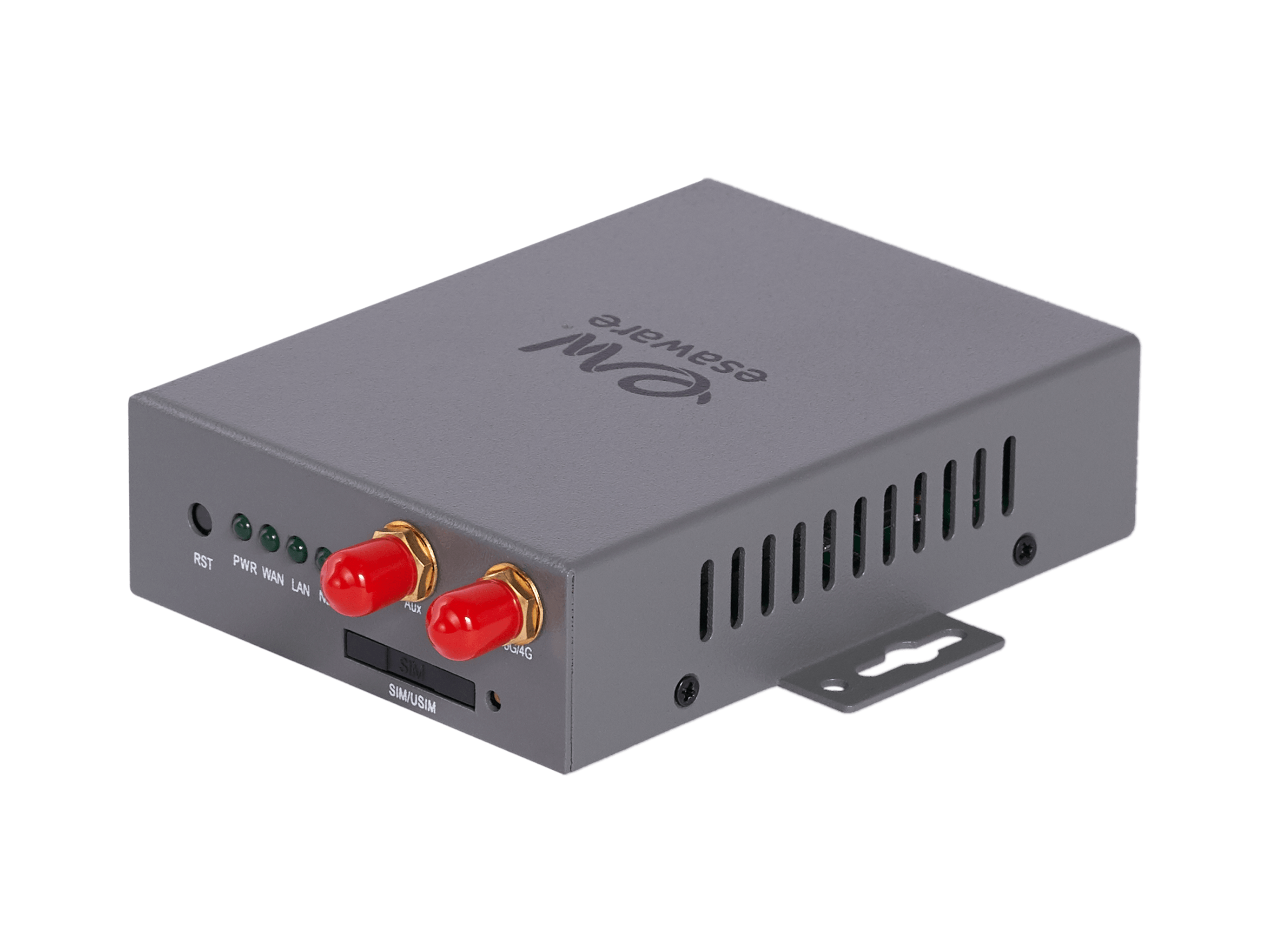

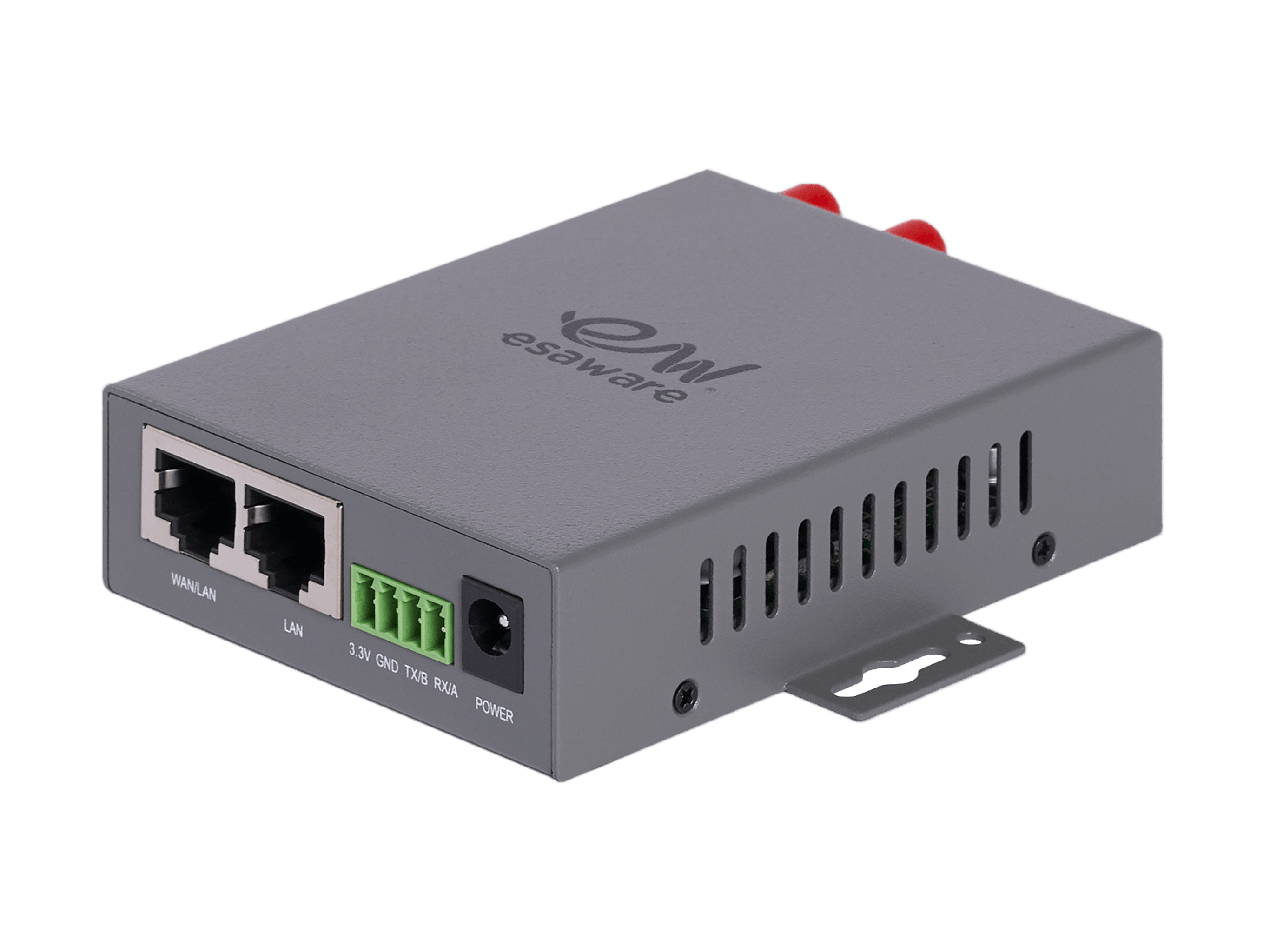

EW500A02A03工业扩展器

我们的工业扩展器可连接任何ESA自动汇设备,包括通过Wi-Fi或4G进行连接,助力设备的数字化。紧凑,强大,方便,在一个解决方案里集合了最大程度的连接性。

  • 工业IP54硬件平台。
  • 强大的32位QCA 9531平台
  • Embedded 基于Linux
  • 广域网接口
  • 局域网接口,用于本地连接
  • 访问客户的Wi-Fi热点
  • 4G SIM卡串口
  • 4米WiFi/4G天线

EW500

下载 PDF

 EW500A02A03
Power Supply7,5 - 32 Vdc 1,5 A
WIRELESS MODULE
Standard Frequency4G|FDD-LTE (Band 1/3/5/7/8/20), LTE-TDD(|38/40/41), 3G|WCDMA(B1/B5/B8), GSM(B3/B8) FDD
LTE:50/150Mbps|HSUPA:5.76/7.2Mbps| HSPA+:5.76/21Mbps
Theoretical BandwidthLTE:50/150Mbps|HSUPA:5.76/7.2Mbps| HSPA+:5.76/21Mbps
WIFI MODULE
Standard and FrequencyIEEE802.11b/g/n
Security encryptionWEP, WPA, WPA2, Optional WPS function
TRANSMIT
FirewallOnboard
ENVIROMENT
Storage Temperature-40?C .. +85?C
Working temperature-30?C .. +75?CWorking temperature-30?C .. +75?CWorking temperature
Environment humidity<95%Environment humidity<95%Environment humidity
MECHANICAL
Dimensions95.5 x 70.5 x 25 mm
Weight450 g

代码

CODEDESCRIPTION
EW500A0000Industrial Router with pre-installed Everyware Runtime
Cortex A8 processor
2 GB flash
256 MB Ram
2 Ethernet ports 10/100 Mb
1 USB port
RS 485 port
Embedded Input/Output module
EW500A0002Industrial Router with pre-installed Everyware Runtime
3G Mini Pci Express card
Cortex A8 processor
2 GB flash
256 MB Ram
2 Ethernet ports 10/100 Mb
1 USB port
RS 485 port
Embedded Input/Output module
EW500A0100Industrial Router with pre-installed Everyware Runtime
Cortex A8 processor
2 GB flash
256 MB Ram
4 Ethernet ports 10/100 Mb
1 USB port
RS 485 port
Embedded Input/Output module
EW500A0102Industrial Router with pre-installed Everyware Runtime
3G Mini Pci Express card
Cortex A8 processor
2 GB flash
256 MB Ram
4 Ethernet ports 10/100 Mb
1 USB port
RS 485 port
Embedded Input/Output module
EW5USBWIFI Antenna EW500 WIFI Dongle USB
