LUMIA WebHMIModular Solution

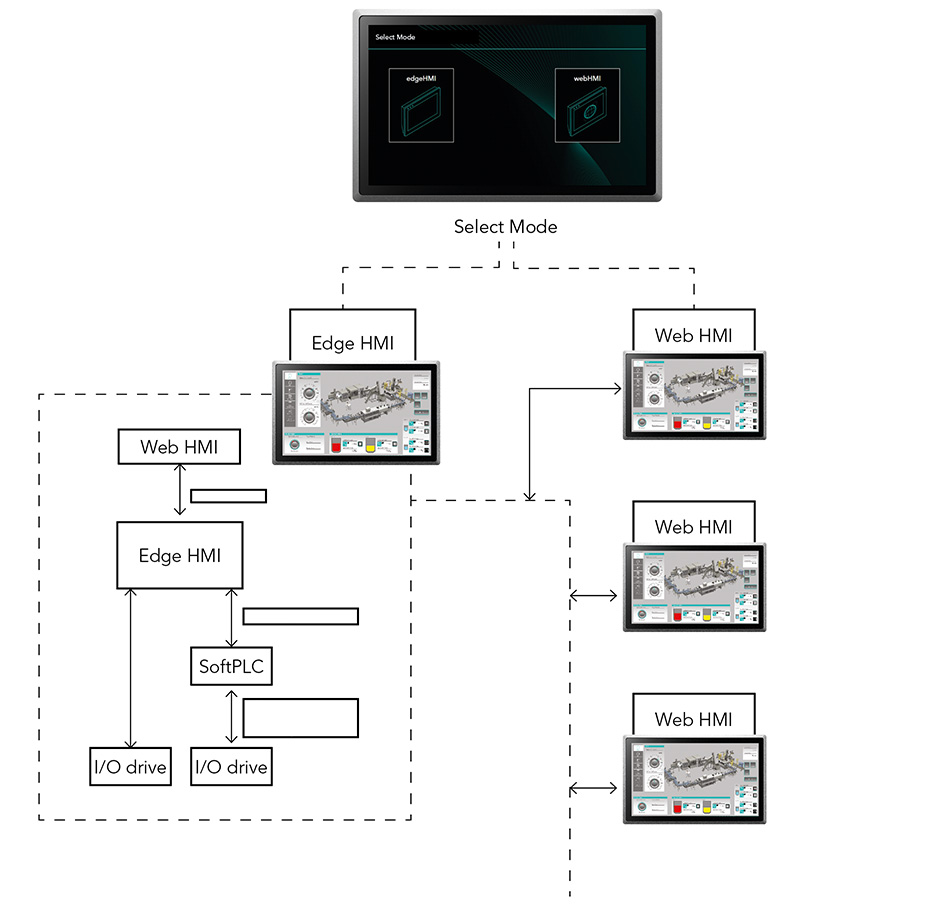

The presentation of the data according to the Lumia paradigm.
Openness, flexibility, scalability and security; the answer is the use of web technologies at the highest level.
Open: a standard browser without any software plug-in is more then enough.
Flexibility: Windows, Linux, Android are natively supported
Scalability: SVG and responsive graphics ensure that the page does not lose sharpness as the resolution and device orientation changes.
Security: thanks to the huge community of developers, web technologies are continuously updated in order to ensure the highest level of security.
  • Linux Debian 10 operating system
  • 10.1 “, 15.6”, 21.5 “, 27” inches high resolution and high brightness wide screen display
  • Full glass front with capacitive touch
  • Rockchip RK3399 fanless 6 core processor
  • Integrated dual band wifi client (2.5GHz – 5GHz)
  • 2 x LAN ports
  • 2 x USB ports (3.0 and 2.0)
  • 2GB DDR4 RAM
  • 16GB internal memory
  • Panel mounting with front IP66 protection
  • VESA mounting with all-around IP66 protection level
  • Optional PBOX pushbutton bar (with connection at 120 ° – 180 °)
  • Control panel for programming parameters without the need of accessing the operating system.

LUMIA WEB HMI - Vesa and Panel Mounting

Download pdf

EmbeddedPC based
O.S.Linux Debian 10 +Windows 10 LTSC 2019
Kreo HMI Control panel
Application softwareChromiumChrome
Display Size10,1" (1280 x 800)10,1" (1280 x 800)
15,6” (1366 x 768)15,6” (1366 x 768)
21,5” (1920x 1080)21,5” (1920x 1080)
27” (1920 x 1080)27” (1920 x 1080)
Display technologyTFTTFT
Display BacklightLedLed
Display Colors16M16M
Touch TechnologyCapacitive16M
Bezel / ChassisAluminium16M
Processor RK3399Celeron QC J3455 – 2,3 GHz
Dual-core Cortex-A72 +Intel Core i3-7100U 2,4 GHz
Quad-core Cortex-A53Intel Core i5-7300U 3,5 GHz
Intel Core i7-7600U 2,8 GHz
ChipsetSoC
GPUCeleron QC J3455 - HD Graphics 500
i3-7100U – HD Graphics 620 – up to 1 GHz
i5-7300U – HD Graphics 620 – up to 1 GHz
i7-7600U – HD Graphics 620 – up to 1 GHz
RAM 2G DDR4Celeron QC J3455 – 4GB DDR3L up to 8 GB DDR3L
Intel Core i3-7100U 2,4 GHz
Intel Core i5-7300U 3,5 GHz
Intel Core i7-7600U 2,8 GHz
4GB up to 16 GB DDR4
Mass storage 16GB eMMC256 GB SSD
512GB SSD
1TB SSD
Ethernet Port 1*1Gb+1*100MbCeleron QC J3455 – 2x 1Gb RJ45 Intel I210 / 2x1Gb RJ45 Intel I211AT
Intel Core 7GEN - 2x 1Gb RJ45
Intel I210AT/I219LM
Wifi 2,5 / 5 GHZ support (client)
COM Port1x RS232/RS485
USB Port1xUSB3.0 + 1xUSB2.0 Celeron QC J3455 – 2 x 3.1
Intel Core 7th GEN – 4 x 3.0
Power Supply (Vdc)12 – 32V DC
Consumption (W)12W 10,1”30W 10,1”
18W 15,6”35W 15,6”
28W 21”50W 21”
28W 27”50W 27”
Operating Temperature (°C)0 … + 50 °C
Storage Temperature (°C)-20 … + 65 °C
Humidity<90% (non condensing)
External dimensions(W/H/D) (mm)10” panel - 269 x 190 x 44.110” panel 69 x 190 x 70x2
15” panel - 402.4 x 251.7 x 47.4
15” vesa - 381 x 231.3 x 59.315” panel 402.4 x 251.7 x 73..4
15” vesa 381 x 231.3 x 80.65
10” vesa 250.6 x 171.6 x40,1
21.5” vesa 530 x 320 x 80
21.5” vesa 530 x 320 x 6021,5” panel 560 x350 x75
21,5” panel 560 x350 x50
27” vesa 648,4x 385,5 x 85
27” vesa 648,4x 385,5 x 66,527” panel 683 x 420 x 75
27” panel 683 x 420 x 60
Cut-out dimensions (W/H) (mm)10” panel - 258.5 x 179.5
15” panel - 390 x 239
21” 547x337
27” 670 x 406
Weight (kg)10” 510” 5
15” 6,515” 6,5
21,5 8KG21,5 8KG
27” 10Kg27” 10Kg
Protection degree Panel – IP66 frontPanel – IP66 front
Vesa – IP66 all aroundVesa – IP66 all around
CertificationsCE - RED (2014/53/EU):CE - RED (2014/53/EU):
Safety: EN 62368-1:2020 + A11:2020Safety: EN 62368-1:2020 + A11:2020
Health: EN 62479:2010Health: EN 62479:2010
EMC: ETSI EN 301 489-1 V2.2.3 (2019-11)EMC: ETSI EN 301 489-1 V2.2.3 (2019-11)
ETSI EN 301 489-17 V3.2.4 (2020-09)ETSI EN 301 489-17 V3.2.4 (2020-09)
Radio: ETSI EN 300 328 V2.2.2, ETSI EN 301 893 V2.1.1 (2017-05)Radio: ETSI EN 300 328 V2.2.2, ETSI EN 301 893 V2.1.1 (2017-05)
UL/ATEX/DNV available soonUL/ATEX/DNV available soon
