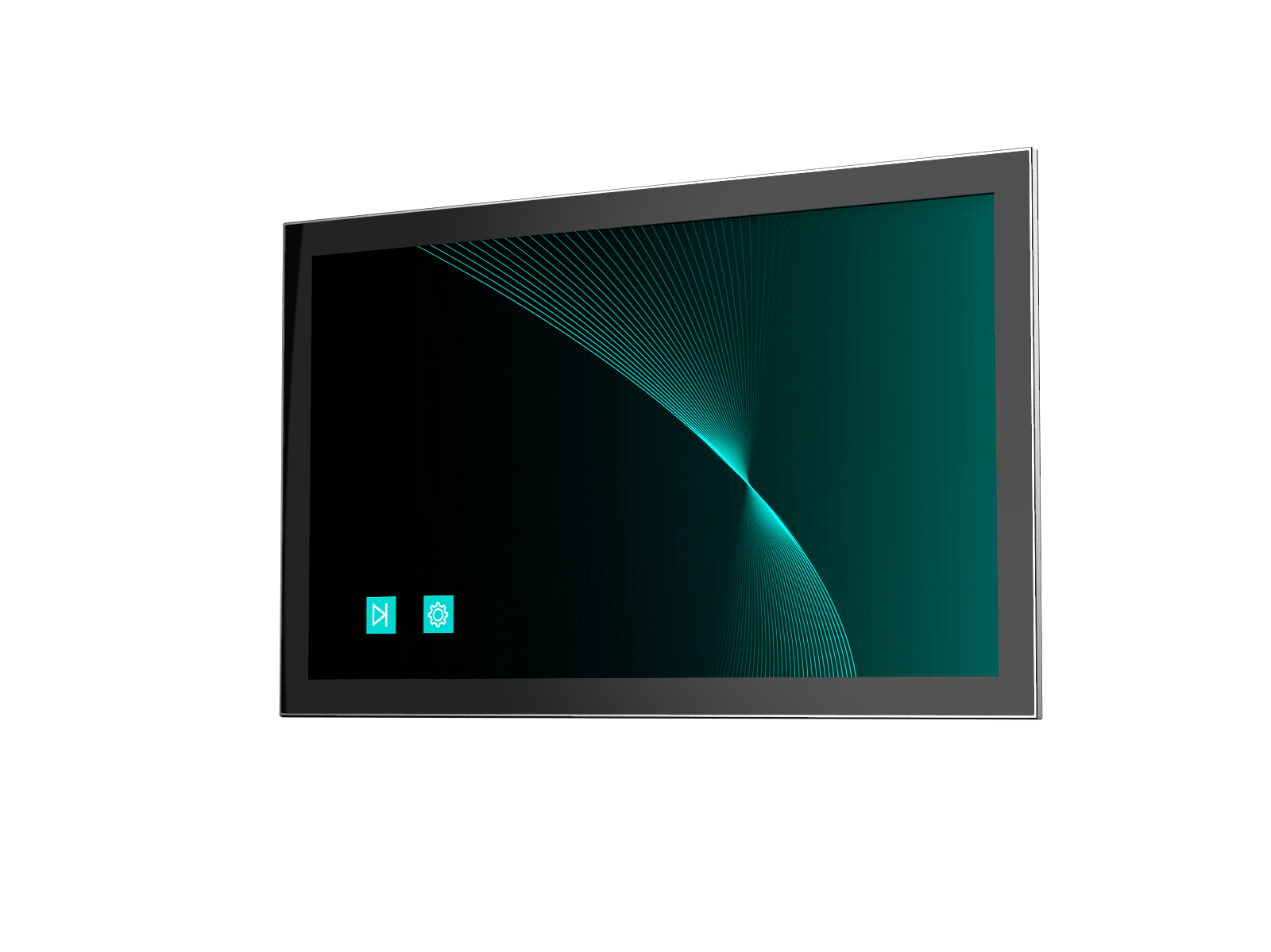

EW327 工业监控美学与功能品质

这个系列的工业显示器结合了创新优雅的设计与最高的自动化性能。根据工业4.0原则进行设计,反应敏捷,使用简易,提升生产效率。

  • LCD宽屏
  • 电阻式和电容式触屏
  • 多视频输入
  • 多触屏输出
  • 厚度更薄,更符合人体工学

EW327

下载 PDF

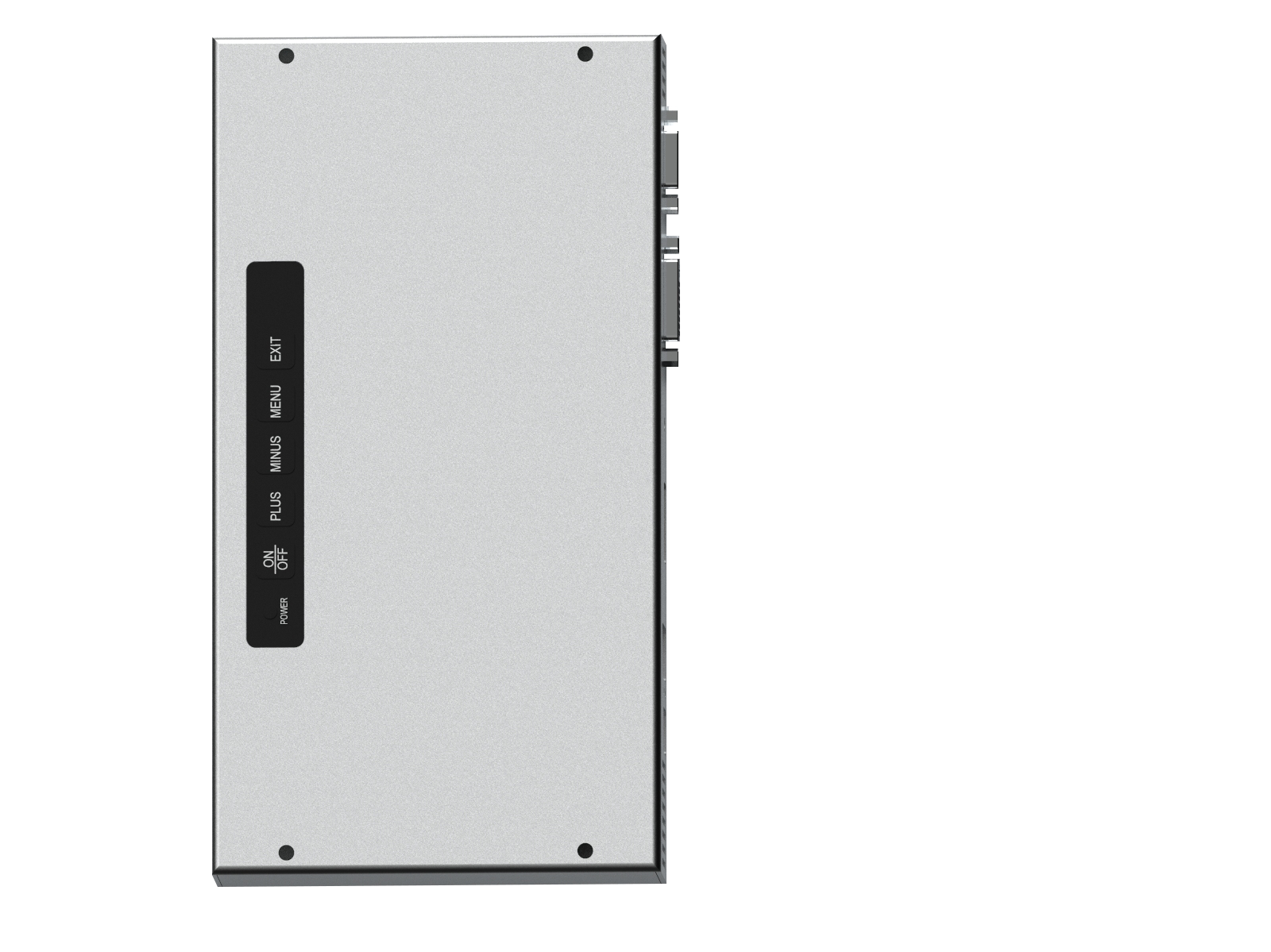

Control buttonsOSD control buttons on back to adjust contrast and brightness
External (W x H x D)396.5mm x 657.5mm x 58 mm (15 .61” x 25.88” x 2.28”)
Cut out (W x H)380.5mm x 641.5mm (14.98” x 25.25”)
MaterialFront: Aluminum - magnesium alloy anodizing ; Back: Metal paint
InstallationEmbedded
Power supplyDC 24V
Power30W
Video portsVGA & DVI
Net weight9KG
Size27" Fu ll HD TFT
Resolution1920 x 1080
Color16.7MB
Display (W x H)336.15mm x 597.6mm (13.23" x 23.53")
Back lightLED
Pixel pitch0.311 x 0.311
Brightness300cd/ m
Contrast3000 : 1
View(L)150 / (R)150 / (U)150 / (D)150
TypeMulti capacitive
Transmitt ance> 85%
Touch signalUSB
Working temperature-0~50°C ( -32~122?)
Storage temperature-20~60°C ( -4~1406 ?)
Humidity5~95%
Working vibrationSSD applied: 1.5 Grms, IEC 60068 -2-64, rando m, 5 ~ 500 Hz, 1 hr/ axis
Working shockSSD applied: 10 G, IEC 60068 -2-64
EMCCE/ FCC Class A
IPIP65 front
