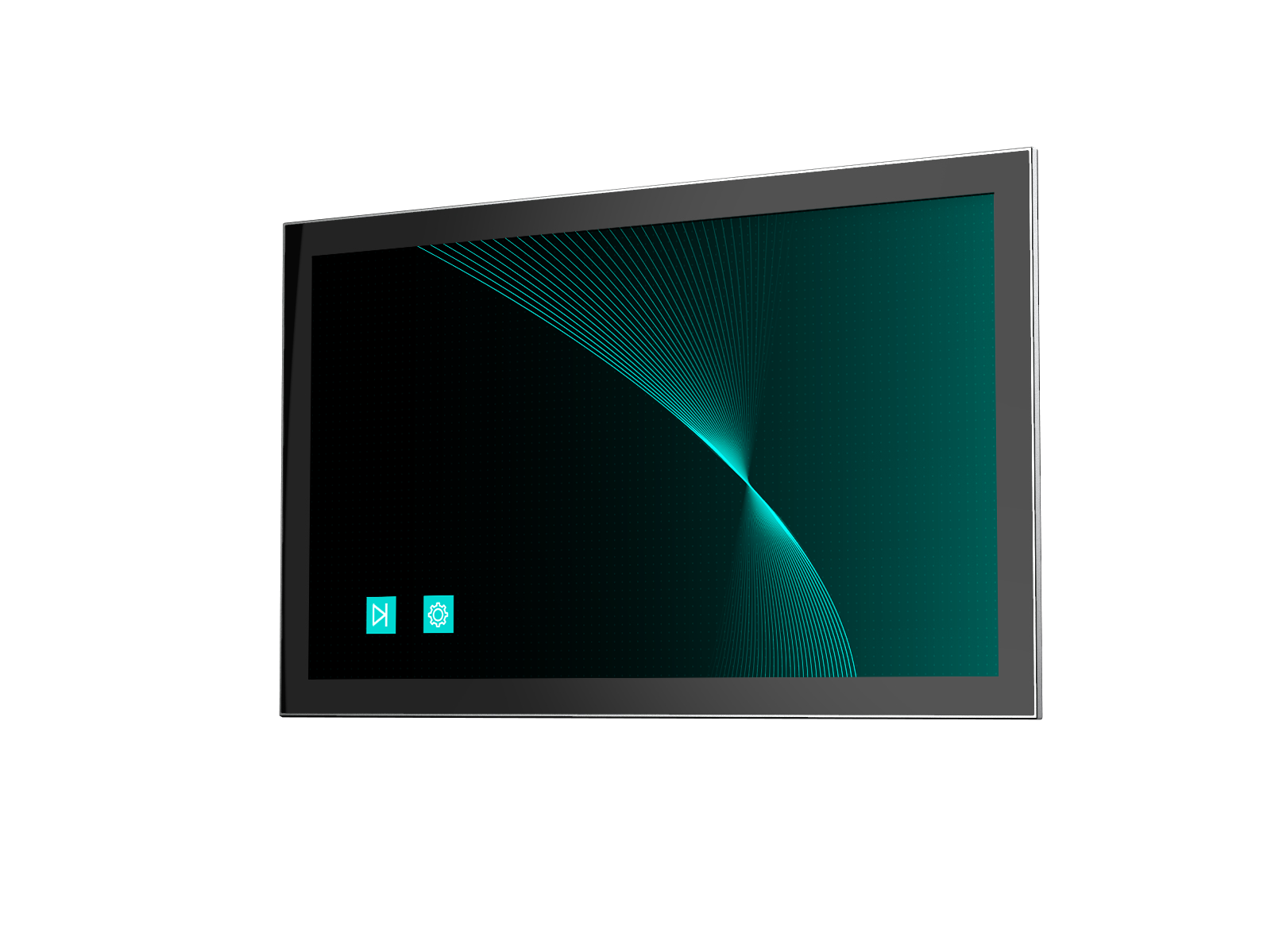

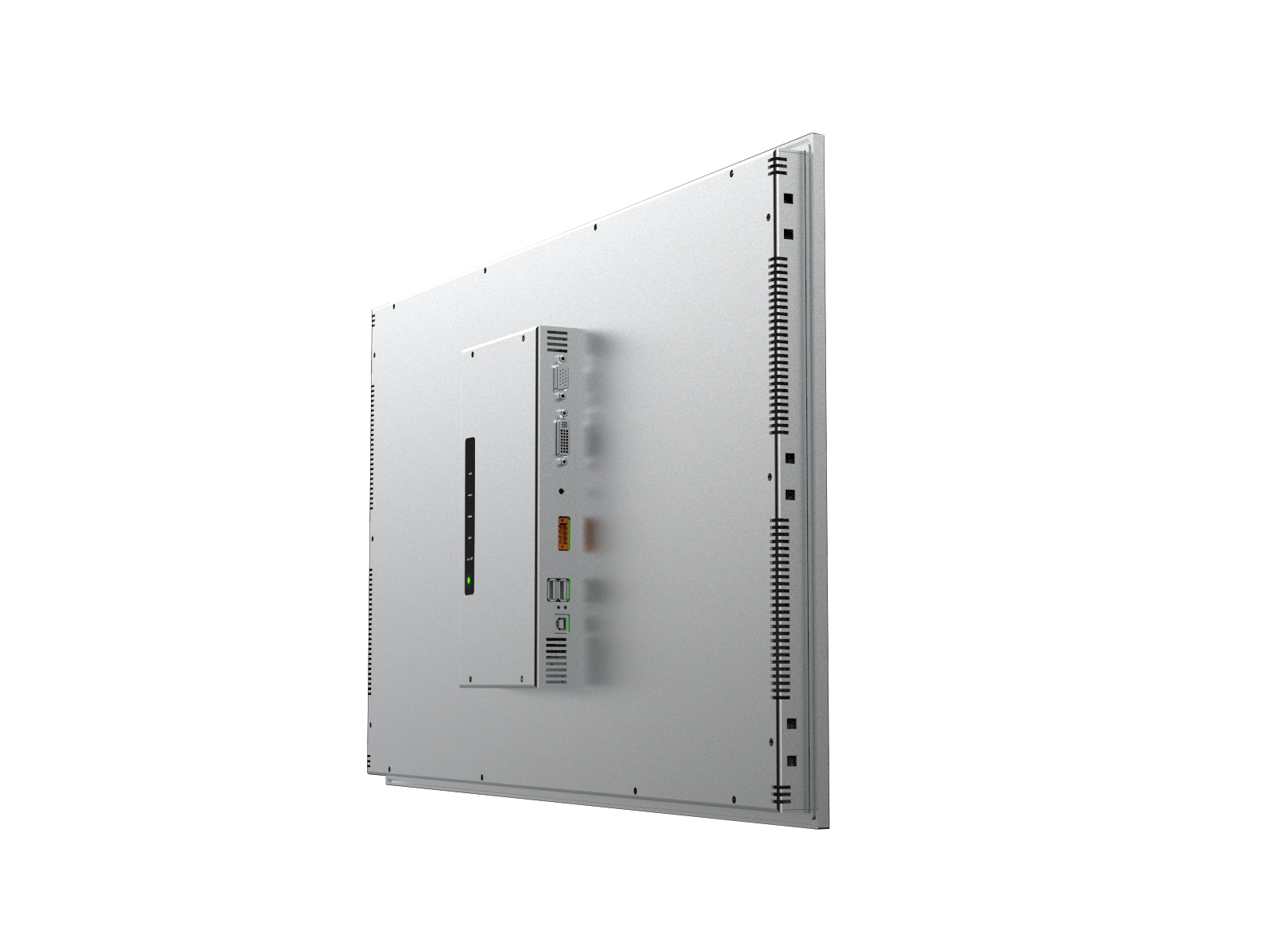

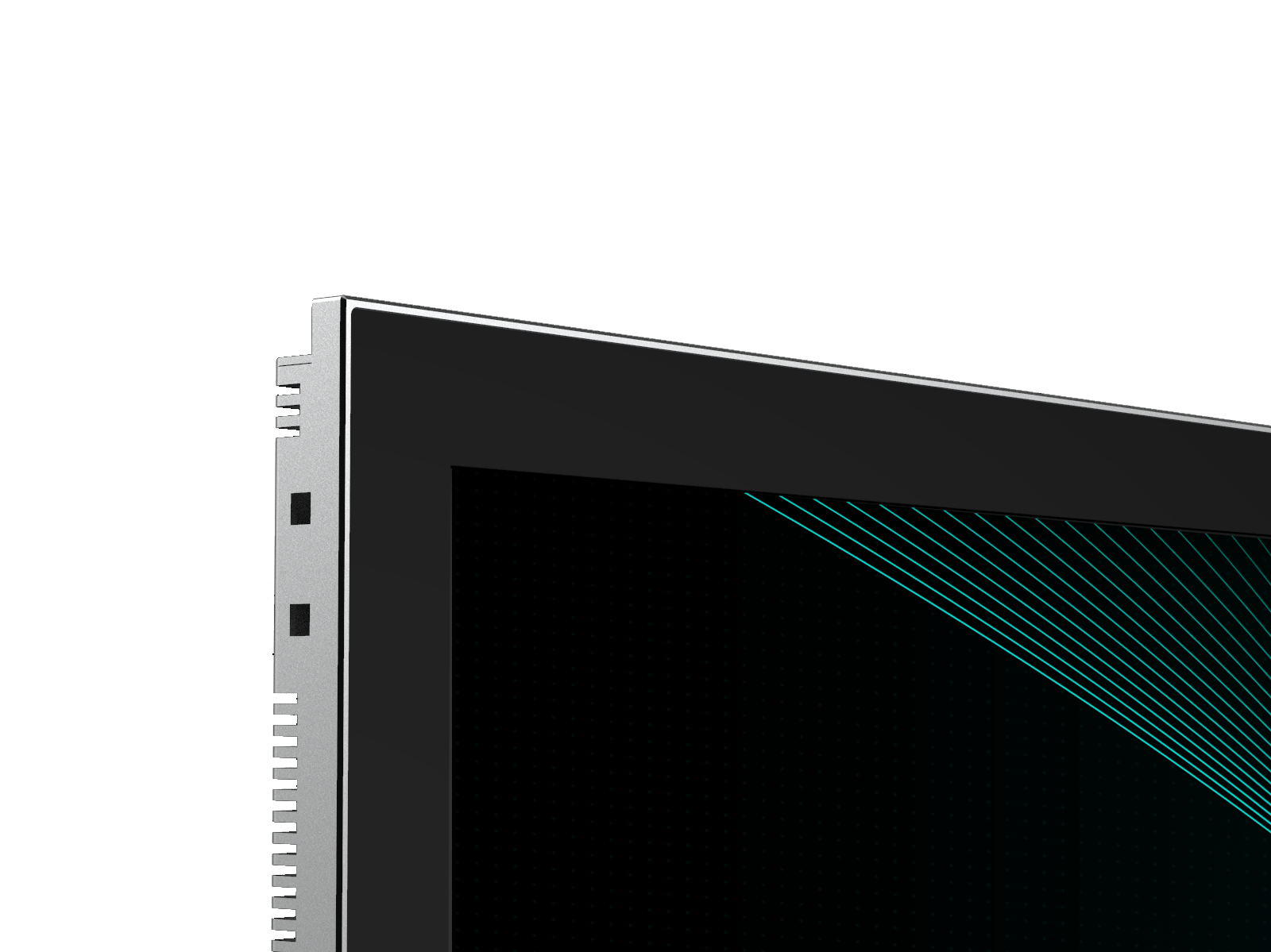

EW327 Industrial MonitorAesthetic and functional quality

A modern and robust glass design industrial monitor that does fit perfectly any industrial application.
The full HD resolution and bright 16 million colour display, the capacitive multitouch and the true flat design let the user create a very high level and modern user interface.
Thanks to the 27” and full HD display several software windows can be displayed in the same page providing to the user an immediate and complete control of the machine.

  • 27” Full HD TFT high brightness display
  • VGA and DVI video input
  • Capacitive multitouch
  • Wide view angle
  • Ultra slim and rugged design

EW327

Download pdf

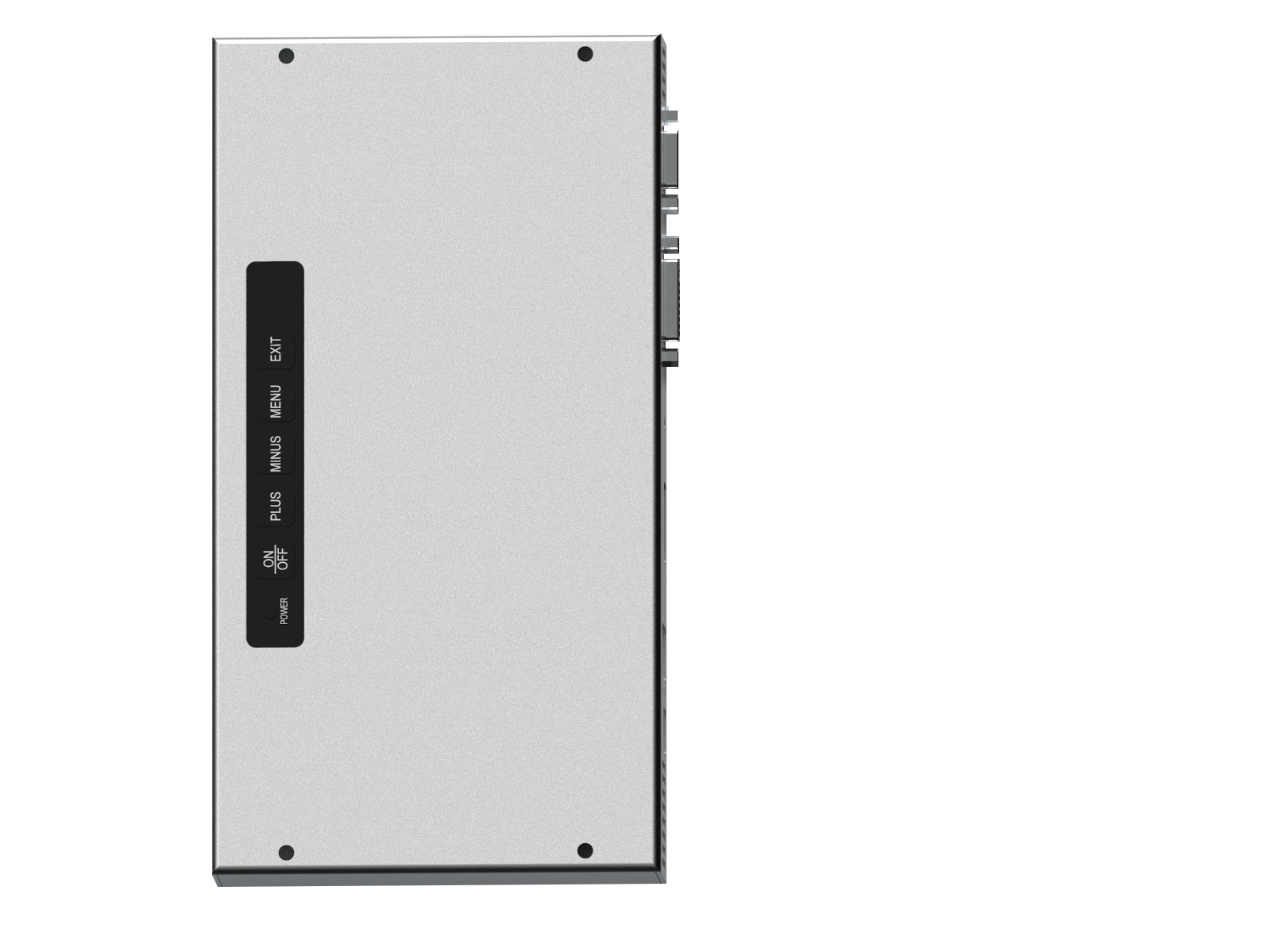

Control buttonsOSD control buttons on back to adjust contrast and brightness
External (W x H x D)396.5mm x 657.5mm x 58 mm (15 .61” x 25.88” x 2.28”)
Cut out (W x H)380.5mm x 641.5mm (14.98” x 25.25”)
MaterialFront: Aluminum - magnesium alloy anodizing ; Back: Metal paint
InstallationEmbedded
Power supplyDC 24V
Power30W
Video portsVGA & DVI
Net weight9KG
Size27" Fu ll HD TFT
Resolution1920 x 1080
Color16.7MB
Display (W x H)336.15mm x 597.6mm (13.23" x 23.53")
Back lightLED
Pixel pitch0.311 x 0.311
Brightness300cd/ m
Contrast3000 : 1
View(L)150 / (R)150 / (U)150 / (D)150
TypeMulti capacitive
Transmitt ance> 85%
Touch signalUSB
Working temperature-0~50°C ( -32~122?)
Storage temperature-20~60°C ( -4~1406 ?)
Humidity5~95%
Working vibrationSSD applied: 1.5 Grms, IEC 60068 -2-64, rando m, 5 ~ 500 Hz, 1 hr/ axis
Working shockSSD applied: 10 G, IEC 60068 -2-64
EMCCE/ FCC Class A
IPIP65 front
