- Linux Debian 10 operating system
- 10.1 “, 15.6”, 21.5 “, 27” inches high resolution and high brightness wide screen display
- Full glass front with capacitive touch
- Rockchip RK3399 fanless 6 core processor
- Integrated dual band wifi client (2.5GHz – 5GHz)
- 2 x LAN ports
- 2 x USB ports (3.0 and 2.0)
- 2GB DDR4 RAM
- 16GB internal memory

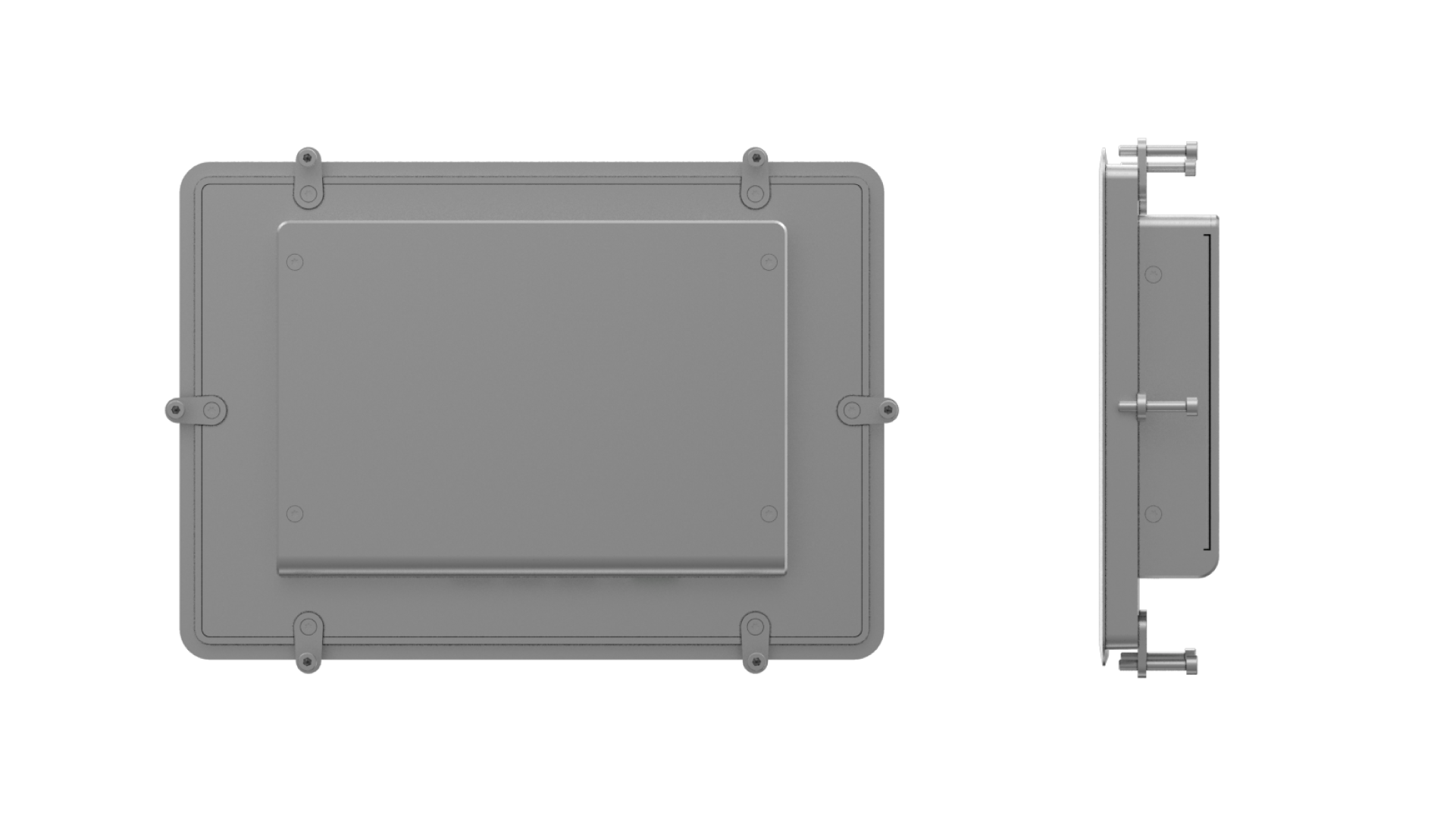

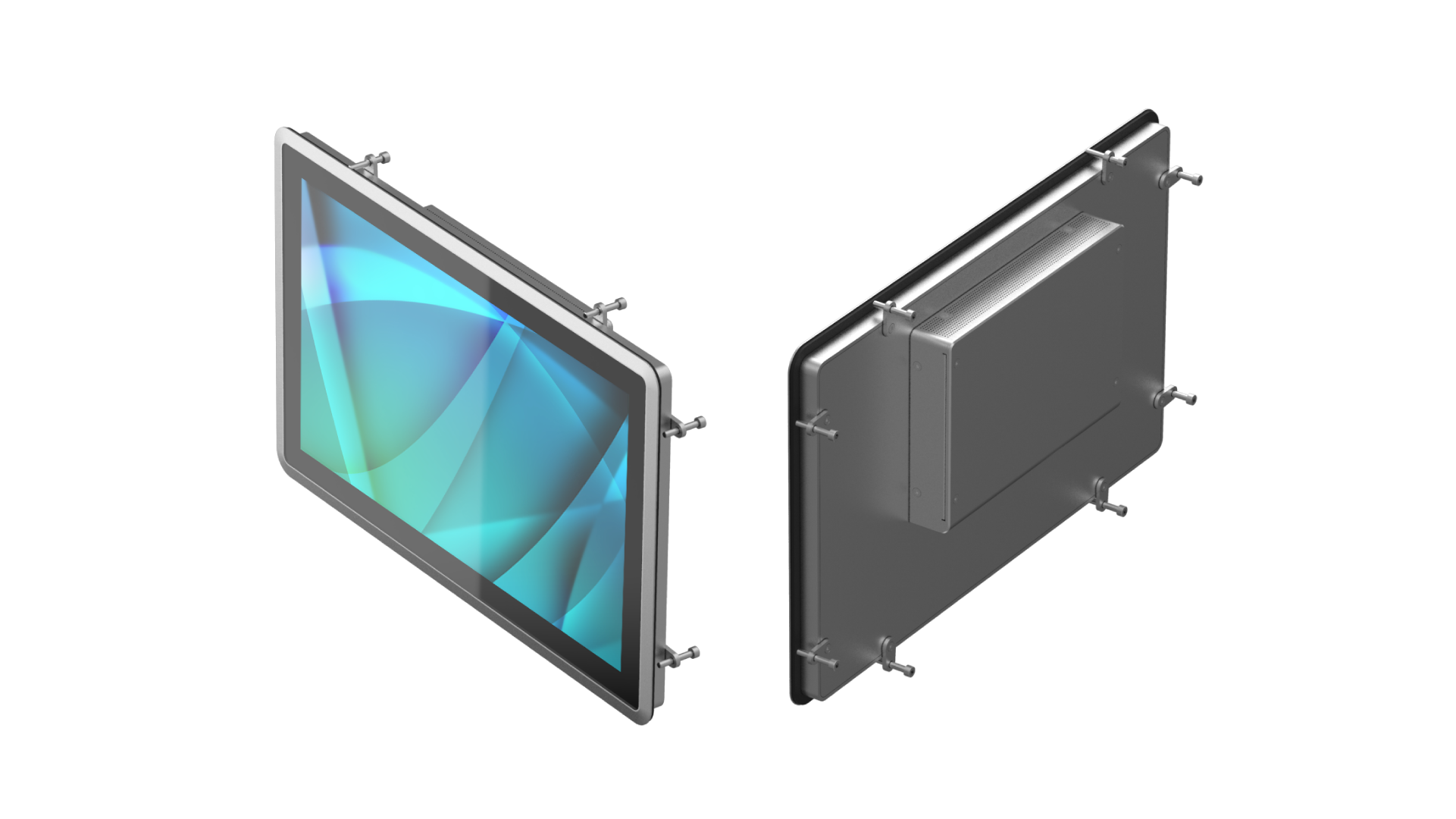

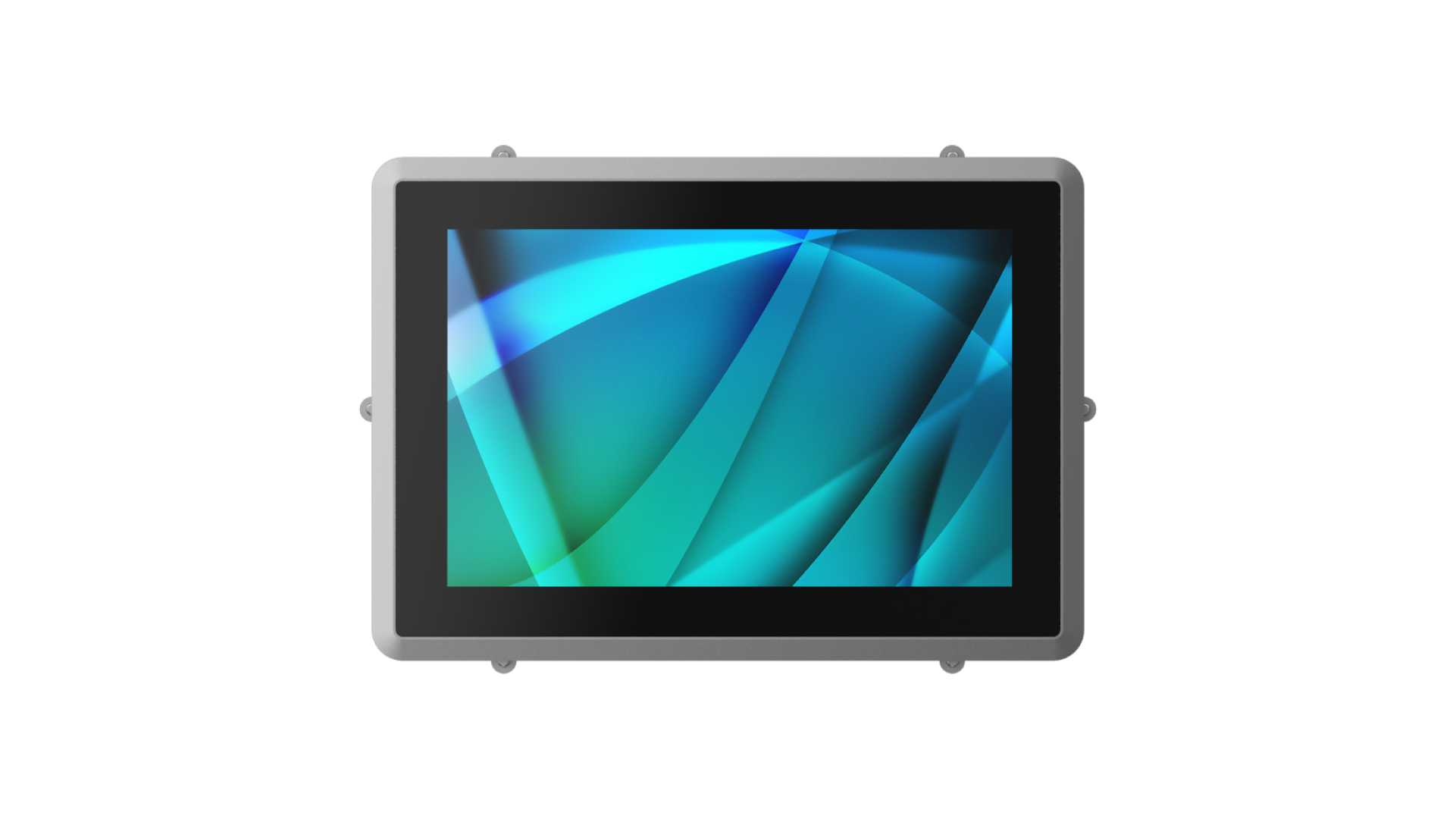

- Panel mounting with IP66 front protection level

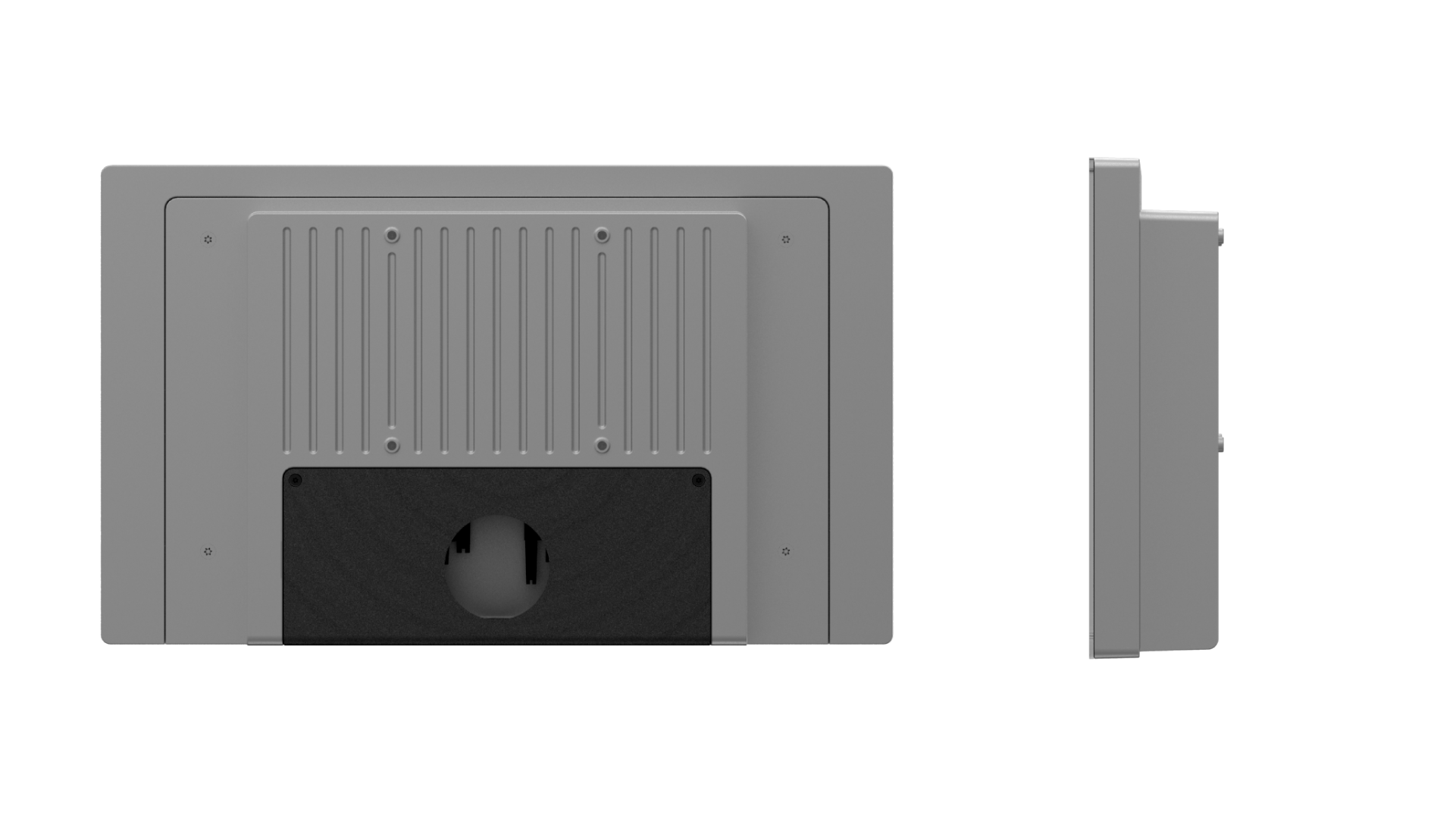

- VESA mounting with all-around IP66 protection degree
- Optional PBOX pushbutton command bar (with connection at 120 ° – 180 °)
- Control panel for programming parameters without the need of accessing the operating system.

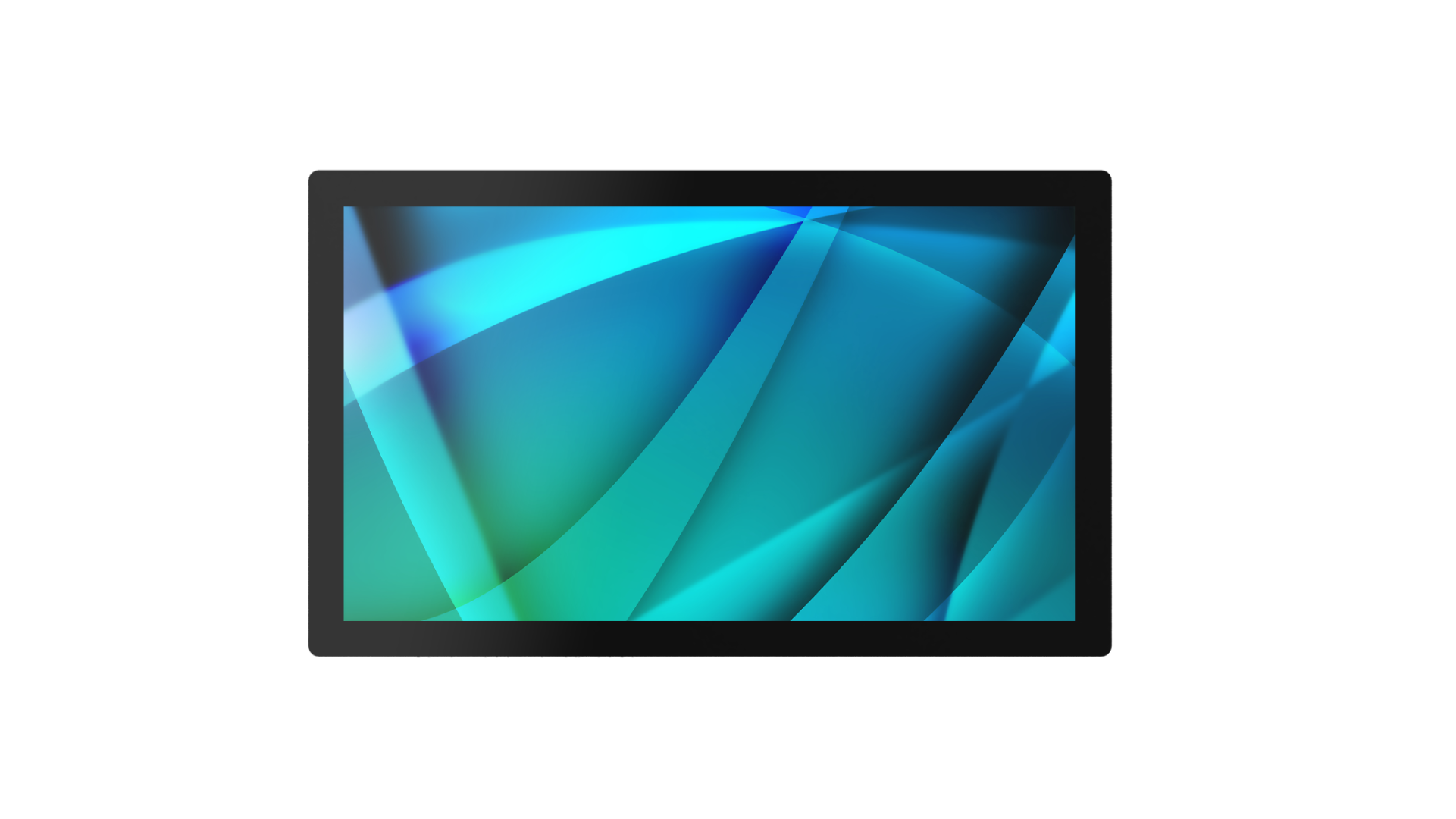

LUMIA EdgeHMIModular Solution
Lumia EdgeHMi is the ideal Edge solution for the Internet of Things (IIoT).
Communication with the field is implemented via the driver portfolio for the most common industrial devices.
Standardization is given by the OPC standard - UA server and client.
The collection, aggregation and rocessing of data are native and can be easily parameterized by the user without the need of writing script code.
The presentation of the data is based on 100% web based technologies: HTML5 and Javascript without the use of browser plug-ins.

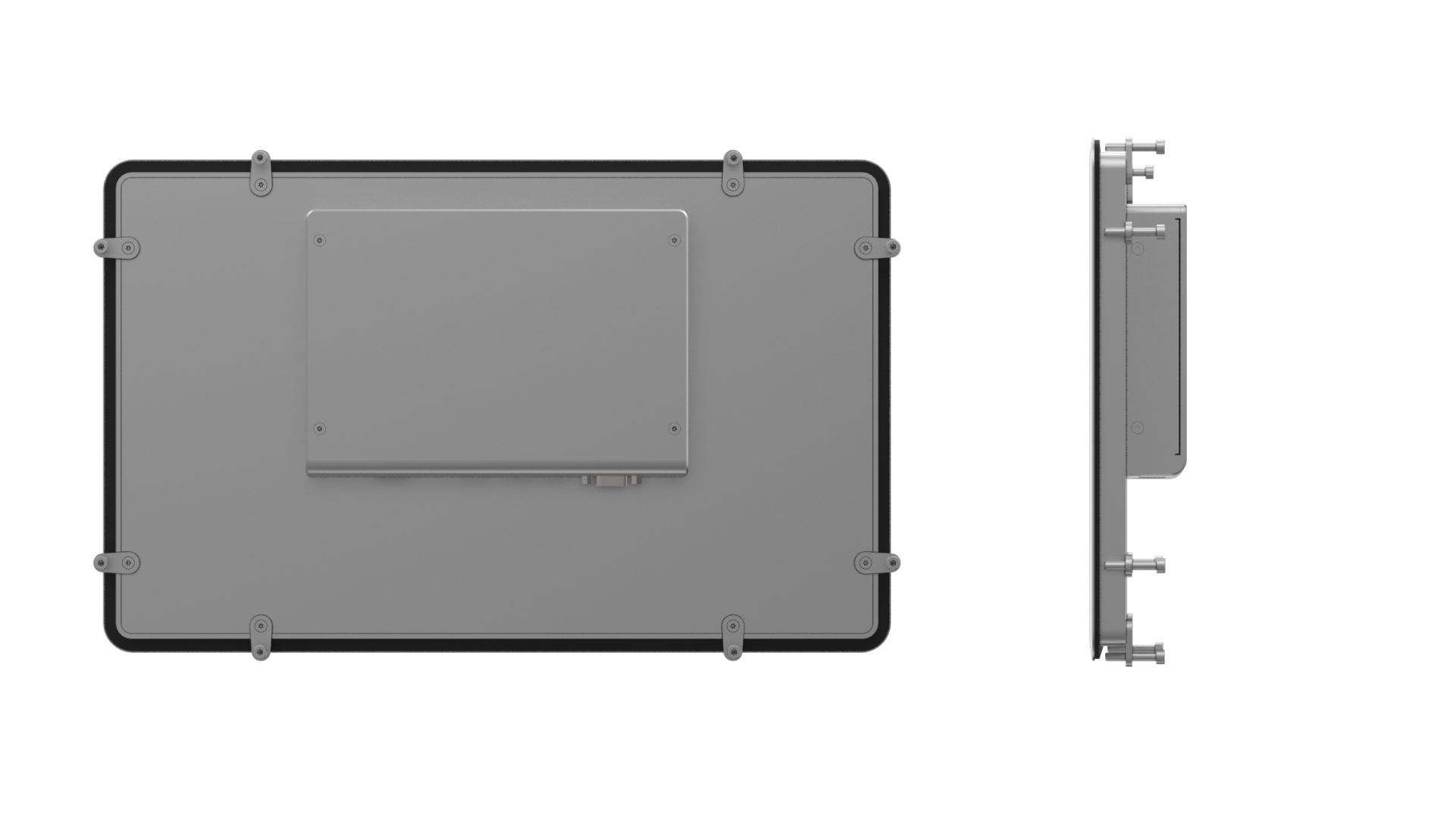

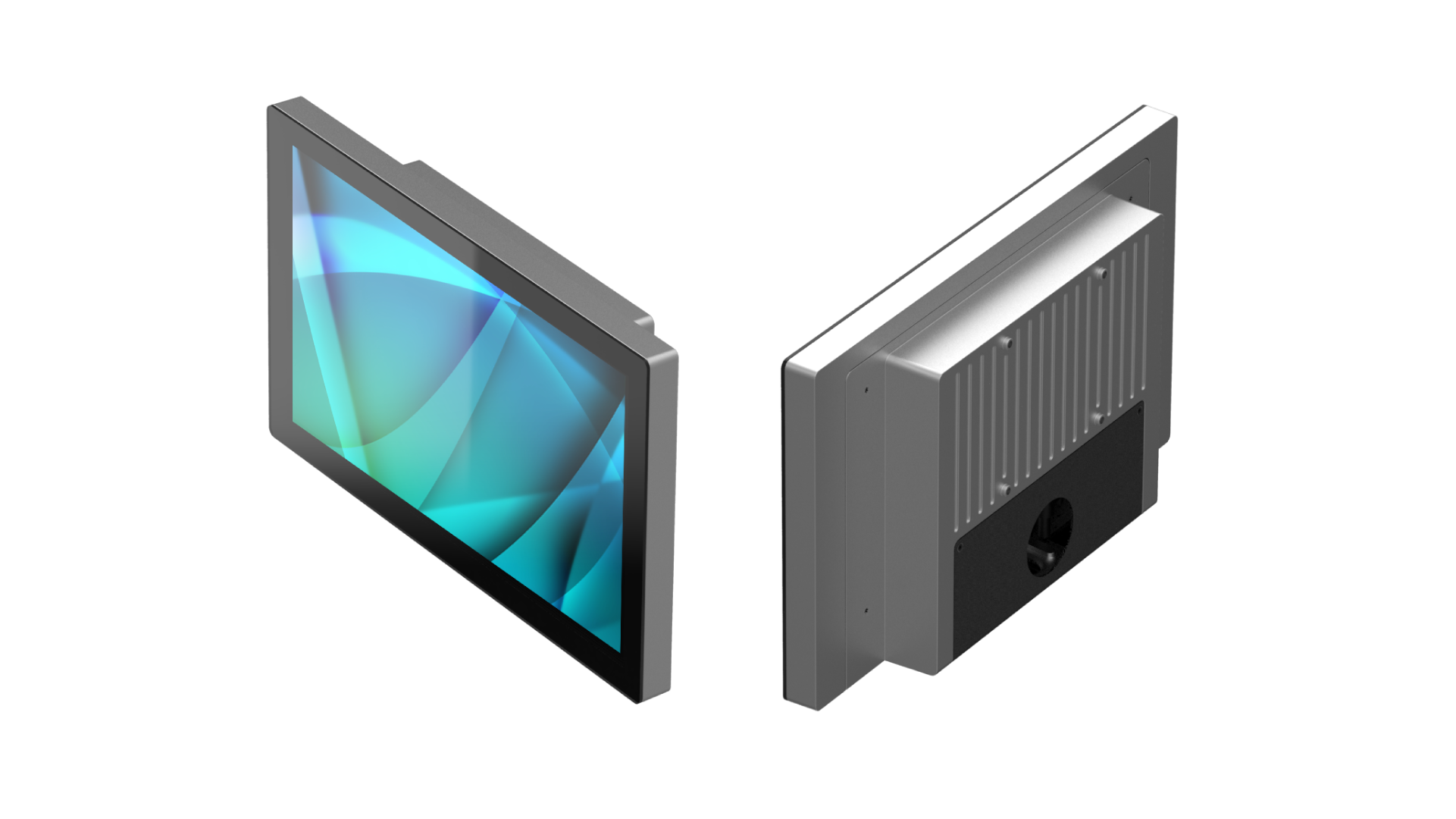

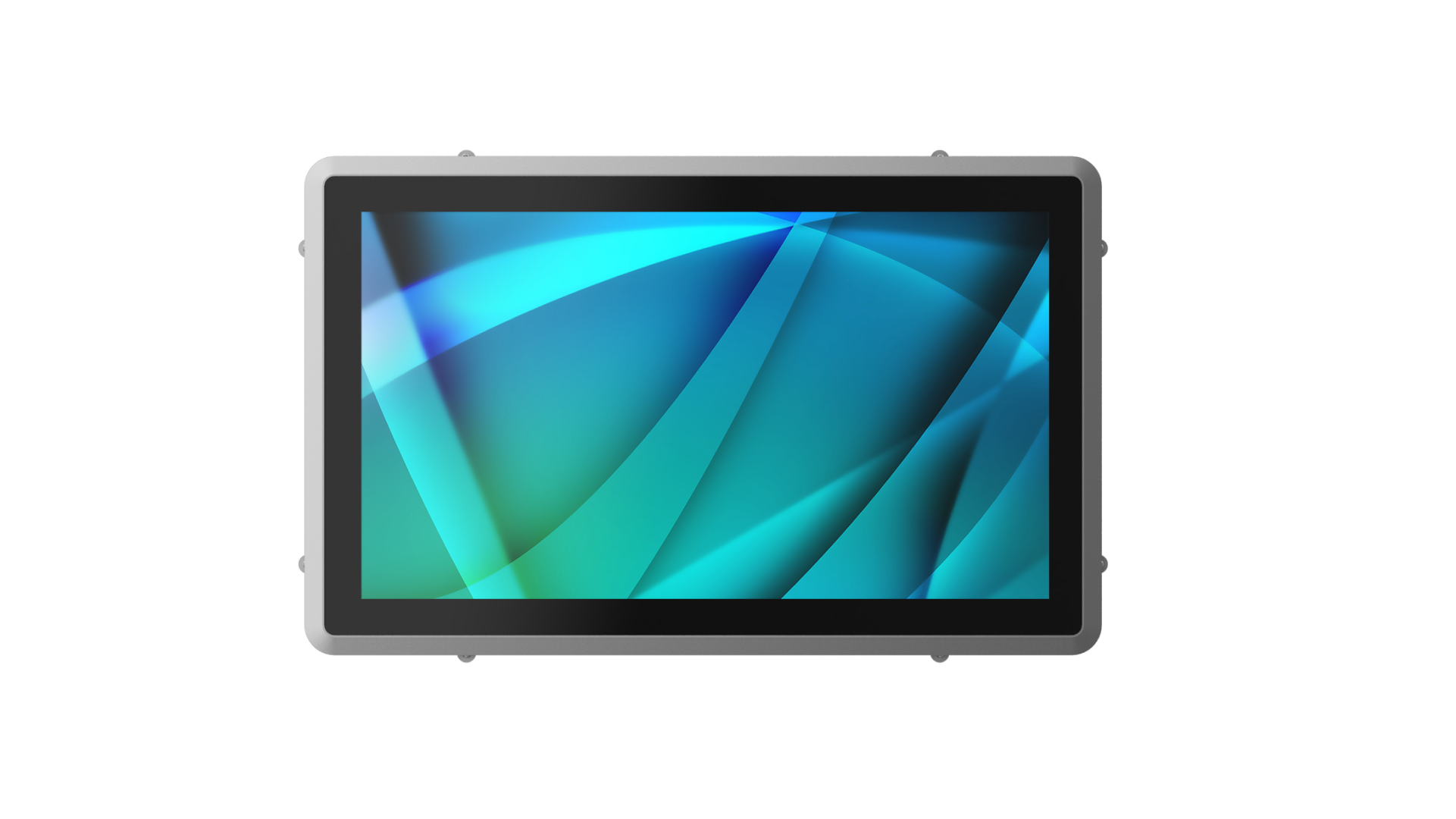

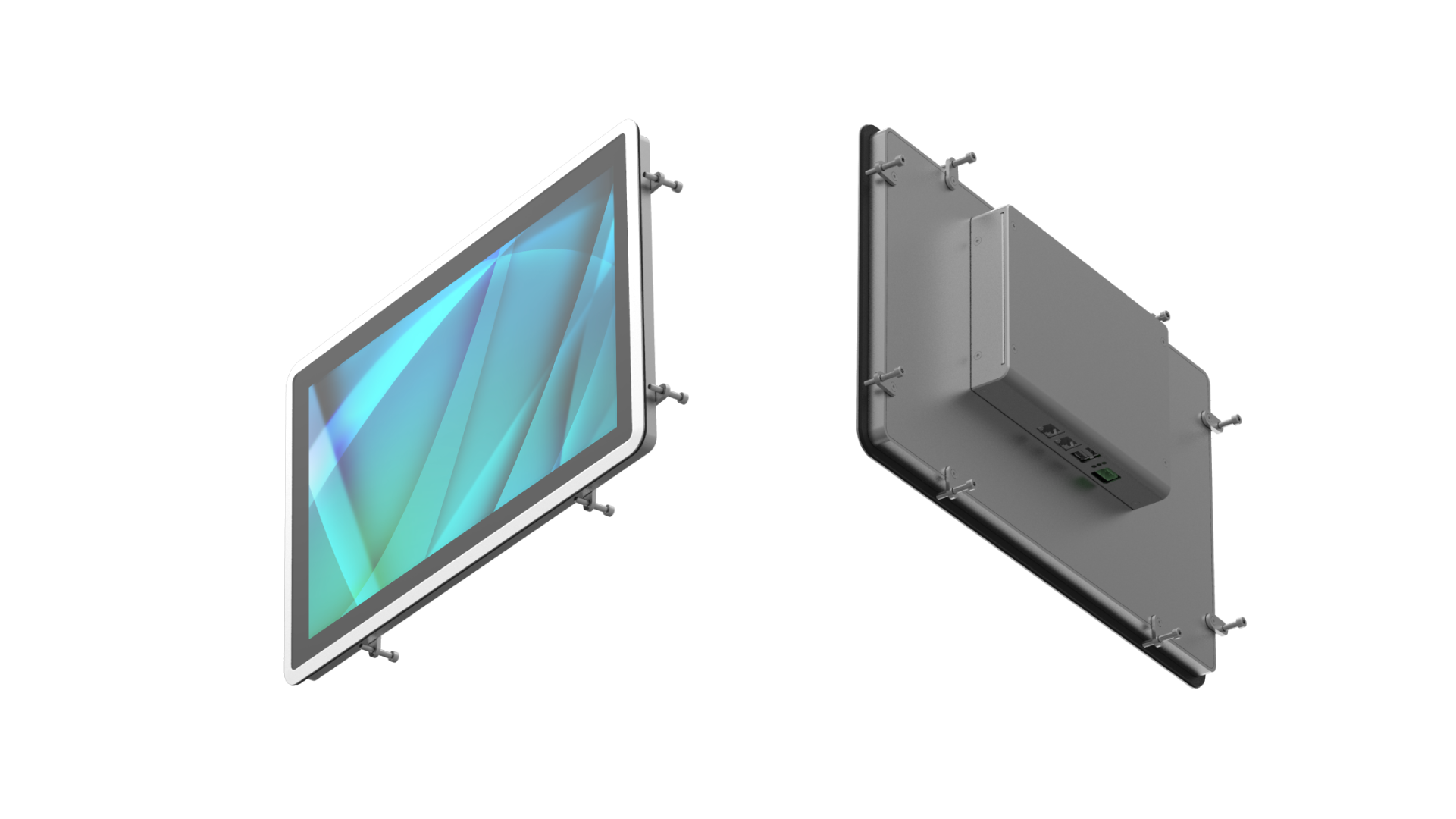

LUMIA EDGE HMI - Vesa and Panel Mounting
Embedded - HMI | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Display Size | 7" (1024x600) | 10,1" (1280 x 800) | 15,6” (1366 x 768) | 21,5” (1920x 1080) | 27” (1920 x 1080) | ||||||||
O.S. | |||||||||||||
Application software | |||||||||||||
Display technology | |||||||||||||
Display Backlight | |||||||||||||
Display Colors | |||||||||||||
Touch Technology | |||||||||||||
Bezel / Chassis | |||||||||||||
Processor | RK35568 Quad core Cortex A55 | Dual-core Cortex-A72 + Quad-core Cortex-A53 |
|||||||||||
RAM - HMI | 4GB DDR4 | ||||||||||||
Mass storage - HMI | |||||||||||||
Wifi - HMI | |||||||||||||
USB Port | |||||||||||||
Power Supply (Vdc) | |||||||||||||
Operation Temp. (°C) | |||||||||||||
Storage Temp (°C) | |||||||||||||
Humidity | |||||||||||||
Status light | |||||||||||||
Case Material | |||||||||||||
Protection | |||||||||||||
Consumption (W) | 10W | ||||||||||||
External (W/H/D) (mm) | 191.6x121.6x34.5 | ||||||||||||
Cut-out (W/H)(mm) | 180x112 | ||||||||||||
Net Weight (Kg) | 2 | ||||||||||||
Certification | CE, UL, IECEx, ATEX, DNV, RoHS in progress |
