These are some features available on text terminals:

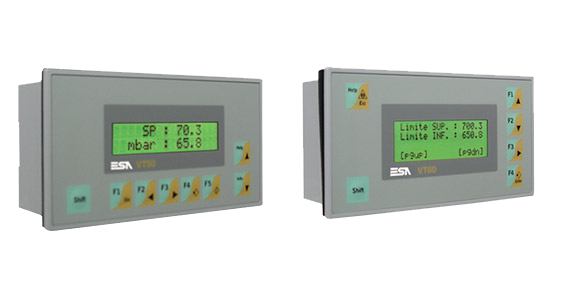

VT50: Operator terminal with text LCD display, 2 rows by 20 characters, 256 KB project, 8 operative keys (5 function keys). Available also with CAN interface.
VT60: Operator terminal with text LCD display, 4 rows by 20 characters, 256 KB project, 6 operative keys (4 function keys). Available also with CAN interface.
VT150: Operator terminal with text LCD display, 4 rows by 20 characters, 256 KB project, 25 operative keys (5+5 customizable function keys). Available with Profibus-DP network or with CAN interface.
VT160: Operator terminal with text LCD display, 4 rows by 20 characters, 256 KB project, 25 operative keys (5+5 customisable function keys), 18 customisable auxiliary keys. Available with Profibus-DP network.
VT170: Operator terminal with text LCD display, 4 rows by 20 characters, 320 KB project, clock, 32 KB recipes, 36 operative keys (12 customisable function keys).
| VT050 | VT060 | VT150 | VT160 | VT170 | |
|---|---|---|---|---|---|
| Display Type | Text LCD | Text LCD | Text LCD | Text LCD | Text LCD |
| Backlighting | LED | LED | LED | LED | LED |
| Columns by Rows [text] | 20 x 2 | 20 x 2 | 20 x 4 | 20 x 4 | 20 x 4 |
| Display area size (mm h-v) | 73,5 x 11,5 | 70,4 x 20,8 | 70,4 x 20,8 | 70,4 x 20,8 | 70,4 x 20,8 |
| Text character Matrix (pixels h-v) | 5 x 7 | 5 x 7 | 5 x 7 | 5 x 7 | 5 x 7 |
| Character dimensions (mm h-v) | 3,2 x 5,5 | 2,95 x 4,75 | 2,95 x 4,75 | 2,95 x 4,75 | 2,95 x 4,75 |
| Contrast adjustment | Trimmer | Trimmer | Trimmer | Trimmer | Trimmer |
| Character set | Ascii, Katakana | Ascii, Katakana | Ascii, Katakana | Ascii, Katakana | Ascii, Katakana |
| Project Memory (bytes) | 256K | 256K | 256K | 256K | 320K |
| Recipes/Alarm buffer (bytes) | - | - | - | - | 32K/8K RAM |
| MSP serial port | RS-232/422/485/TTY 20 mA | RS-232/422/485/TTY 20 mA | RS-232/422/485/TTY 20 mA | RS-232/422/485/TTY 20 mA | RS-232/422/485/TTY 20 mA |
| ASP serial port | - | - | - | - | RS-232 (9 pin) |
| LPT parallel port | - | - | - | - | - |
| Connection with optional keyboard | - | - | Yes | Integrated | - |
| Integrated network (optional) | CAN | CAN | CAN, Profibus-DP | Profibus-DP | - |
| Optional | Profibus-DP, Interbus-S, CAN | Profibus-DP, Interbus-S, CAN | Profibus-DP, Interbus-S, CAN | Profibus-DP, Interbus-S, CAN | Profibus-DP, Interbus-S, CAN |
| ESA-Net (variables) | Client | Client | Client | Client | Server (128), Client |
| External (W x H x D) (mm) | 166 x 86 x 41 | 166 x 86 x 41 | 148 x 188 x 41 | 296 x 188 x 42 | 126 x 196 x 60 |
| Cut-out (W x H) (mm) | 157 x 77 | 157 x 77 | 123 x175 | See installation sheet | 107 x178 |
| Power supply/Power consumed (24 Vdc) | 18...32 Vdc/5 W | 18...32 Vdc/5 W | 18...32 Vdc/15 W | 18...32 Vdc/15 W | 18...32 Vdc/9 W |
| Protection degree (front) | IP 66 | IP 66 | IP 65 | IP 65 | IP 65 |
| Operating temperature (°C) | 0...+50 | 0...+50 | 0...+50 | 0...+50 | 0...+50 |
| Storage/transport temperature (°C) | -20...+60 | -20...+60 | -20...+60 | -20...+60 | -20...+60 |
| Humidity | <85%(non condensing) | <85%(non condensing) | <85%(non condensing) | <85%(non condensing) | <85%(non condensing) |
| Weight (kg) | 0,5 | 0,5 | 0,7 | 0,8 | 0,9 |
| Project Languages | 4 | 4 | 6 | 6 | 8 |
| Password levels/Bit passwords | -/8 | -/8 | 10/8 | 10/8 | 10/8 |
| Pages/Fields per page | 127/12 | 1024/32 | 1024/32 | 1024/32 | 1024/16 |
| Format of variables | DEC, HEX, BIN, BCD, ASCII, Floating point | DEC, HEX, BIN, BCD, ASCII, Floating point | DEC, HEX, BIN, BCD, ASCII, Floating point | DEC, HEX, BIN, BCD, ASCII, Floating point | DEC, HEX, BIN, BCD, ASCII, Floating point |
| Dynamic texts/Lists of images messages | Value depends on dimensions of project memory/- | Value depends on dimensions of project memory/- | Value depends on dimensions of project memory/- | Value depends on dimensions of project memory/- | Value depends on dimensions of project memory/- |
| ISA alarms/Info-messages | -/128 | -/1024 | -/1024 | -/1024 | 1024/1024 |
| Help messages (pages/info messages/alarms) | 127/128/- | 1024/1024/- | 1024/1024/- | 1024/1024/- | 1024/1024/1024 |
| Alarm history buffer | - | - | - | - | 256 |
| Recipes (Number/Variables per recipe) | - | - | - | - | 1024/256 |
| Pipelines (Number/Total bytes) | - | - | - | - | - |
| Macros (Number/Commands per macro) | - | - | 1024/16 | 1024/16 | 1024/16 |
| Print pages (Total/Number of fields per page) | - | - | - | - | 1024/64 |
| Automatic operations/Timers | 20/20 | 20/20 | 32/32 | 32/32 | - |
| Equations | 32 | 32 | 32 | 32 | - |
| Keyboard Operative/function/alphanumeric keys | 8/5/- | 6/4/- | 9/5/11 | 9/23/11 | 13/12/11 |
| Certifications | CE, cULus | CE, cULus | CE, cULus | CE, cULus | CE, cULus |
These are some features available on graphic terminals:
VT130: Operator terminal with 3″ graphic LCD display, STN 4 tones of blue, 160×80, 512 KB project, clock, 128 KB recipes, 25 operative keys (5 function keys, 20 customisable). Available also with Profibus-DP network
VT330: Operator terminal with 10,4″ graphic LCD display, 256 colors, 30 rows by 80 characters, VGA (640 x 480), MSP (RS232/422/485/TTY), ASP (RS232/485), LPT (Centronics), 2,3 MB project, clock, 256 KB recipes, 74 operative keys (28 function keys, 16 customisable)
| VT130 | VT330 | |
|---|---|---|
| Display Type | Graphic LCD 4 tones of blue STN | Graphic LCD 256 colors TFT |
| Backlighting | White LED | CCFL |
| Resolution in pixels h-v (inches) | 160 x 80 (3”) | 640 x 480 (10,4”) |
| Min. lamp life at 25°C (h) | 50 K | 30 K |
| Display area size (mm h-v) | 67 x 37 | 211,2 x 158 |
| Columns by Rows/Character dimensions | Depending on used Font | Depending on used Font |
| Contrast adjustment | Software | Software |
| Character set | Programmable fonts/TTF Windows® (also Unicode) | Programmable fonts/TTF Windows® (also Unicode) |
| Project (text+graphic) (bytes) | 640K | 640K+1792K |
| Recipes/Alarm buffer (bytes) | 16K/8 KB FLASH | 256K/8K RAM |
| Memory card for backup/Expansion (bytes) | - | 8M/4M (graphic) |
| MSP serial port | RS-232/422/485/TTY 20mA | RS-232/422/485/TTY 20mA |
| ASP serial port | RS-232 (8 pin) | RS-232/RS485 (15 pin) |
| LPT parallel port | - | Centronics |
| Integrated (option) | Profibus-DP | - |
| Optional | Profibus-DP, CAN, Interbus-S | Profibus-DP, Interbus-S, CAN |
| ESA-Net (variables) | Client | Server (256), Client |
| External (W x H x D) (mm) | 166 x 100 x 39,6 | 435 x 260 x 74 |
| Cut-out (W x H) (mm) | 157 x 91 | 403 x 240 |
| Power supply/Power consumed (24 Vdc) | 18…32 Vcc / 10 W | 18...32 Vdc/15 W |
| Protection level | IP 66 (frontal) | IP 66 (frontal) |
| Operating temperature (°C) | 0…+50 | 0…+50 |
| Storage/transport temperature (°C) | -20…+60 | -20…+60 |
| Humidity | <85%(non condensing) | <85%(non condensing) |
| Weight (kg) | 0,5 | 4 |
| Project Languages | 4 | 8 |
| Password levels/Bit passwords | 10/ 8 | 10/ 8 |
| Pages/Fields per page | 64/22 | 1024/304 |
| Format of variables | DEC, HEX, BIN, BCD, ASCII, Floating point | DEC, HEX, BIN, BCD, ASCII, Floating point |
| Dynamic texts/Lists of images | Value depends on dimensions of project memory | Dynamic texts/Lists of images Value depends on dimensions of project memory |
| ISA alarms/Info-messages | 256/256 | 1024/1024 |
| Help messages (pages/info messages/alarms) | 64/256/256 | 1024/1024/1024 |
| Alarm history buffer | 220 | 256 |
| Recipes (Number/Variables per recipe) | 128/256 | 1024/512 |
| Trends (Memory/Number of samples) | - | 8192/640 |
| Pipelines (Number/Total bytes) | - | 64/512 |
| Macros (Number/Commands per macro) | 1024/16 | 1024/16 |
| Print pages (Total/Number of fields per page) | 64/128 | 1024/128 |
| Automatic operations/Timers | 32/32/32 | 32/32/32 |
| Max bargraphs per page (taken together with fields) | 22 | 304 |
| Indicators,potentiometers,selectors per page | - | 256 |
| Project images | BMP, JPEG, TIFF, …. Etc | BMP, JPEG, TIFF, PSD, WMF, PNG, EPS, ETC... |
| Hardware clock | Supercapacitor 72 hours | With battery |
| Operative/function/ alphanumeric keys | 10/5/10 | 19/28/27 |
| Certifications | CE, cULus , Atex 2014/34/UE directive Group II Category 3 G D Zone 2/22 | CE, cULus |
ESA Automation offers a keypad module, with 20 customisable keys, 2 leds per key, buzzer.Direct connection to Profibus-DP 12 Mbit/s network.
MT20DP: Slave Profibus-DP port, up to 12 Mbit/s
| CODES | DESCRIPTION |
|---|---|
| VT05000000 | MSP (RS232/422/485/TTY) |
| VT050000CN | ASP8 (RS232 for programming), CAN interface |
| VT06000000 | MSP (RS232/422/485/TTY) |
| VT060000CN | ASP-8 (RS232 for programming), CAN interface |
| VT150W00000 | MSP (RS232/422/485/TTY) |
| VT150W000DP | MSP (RS232/422/485/TTY), Profibus-DP network |
| VT150WA00CN | ASP-8 (RS232 for programming), CAN interface |
| VT160W00000 | MSP (RS232/422/485/TTY) |
| VT160W000DP | MSP (RS232/422/485/TTY), Profibus-DP network |
| VT170WA0000 | MSP (RS232/422/485/TTY), ASP-9 (RS232) |
| CODES | DESCRIPTION |
|---|---|
| VT130W00000 | MSP (RS232/422/485/TTY), ASP-8 (RS232) |
| VT130W000DP | ASP-8 (RS232), Profibus-DP network |
| VT330WAPT00 | MSP (RS232/422/485/TTY), ASP (RS232/485), LPT (Centronics) |
| CODE | DESCRIPTION |
|---|---|
| MT20DP | Slave Profibus-DP port, up to 12 Mbit/s |
| MT20DPMAN | MT20DP manual and configuration disk with GSD file |
