• Celeron J1900 Quad Core processor
• 4GB RAM
• 4 COM ports RS-232/485
• 3 Gigabit ethernet ports based on Intel I211 controller
• 24V DC power supply
• Compact size
LUMIA RockCompact and High Performance

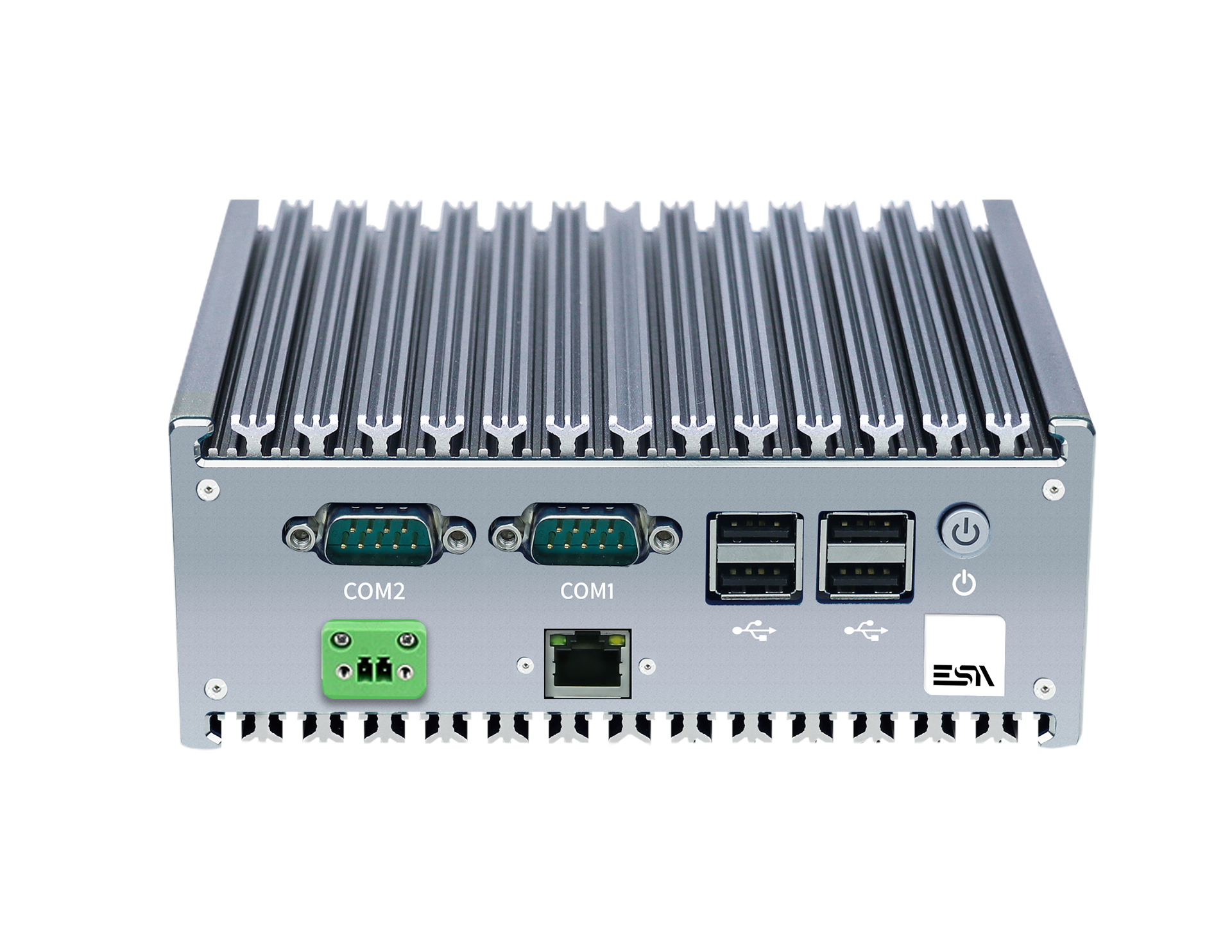

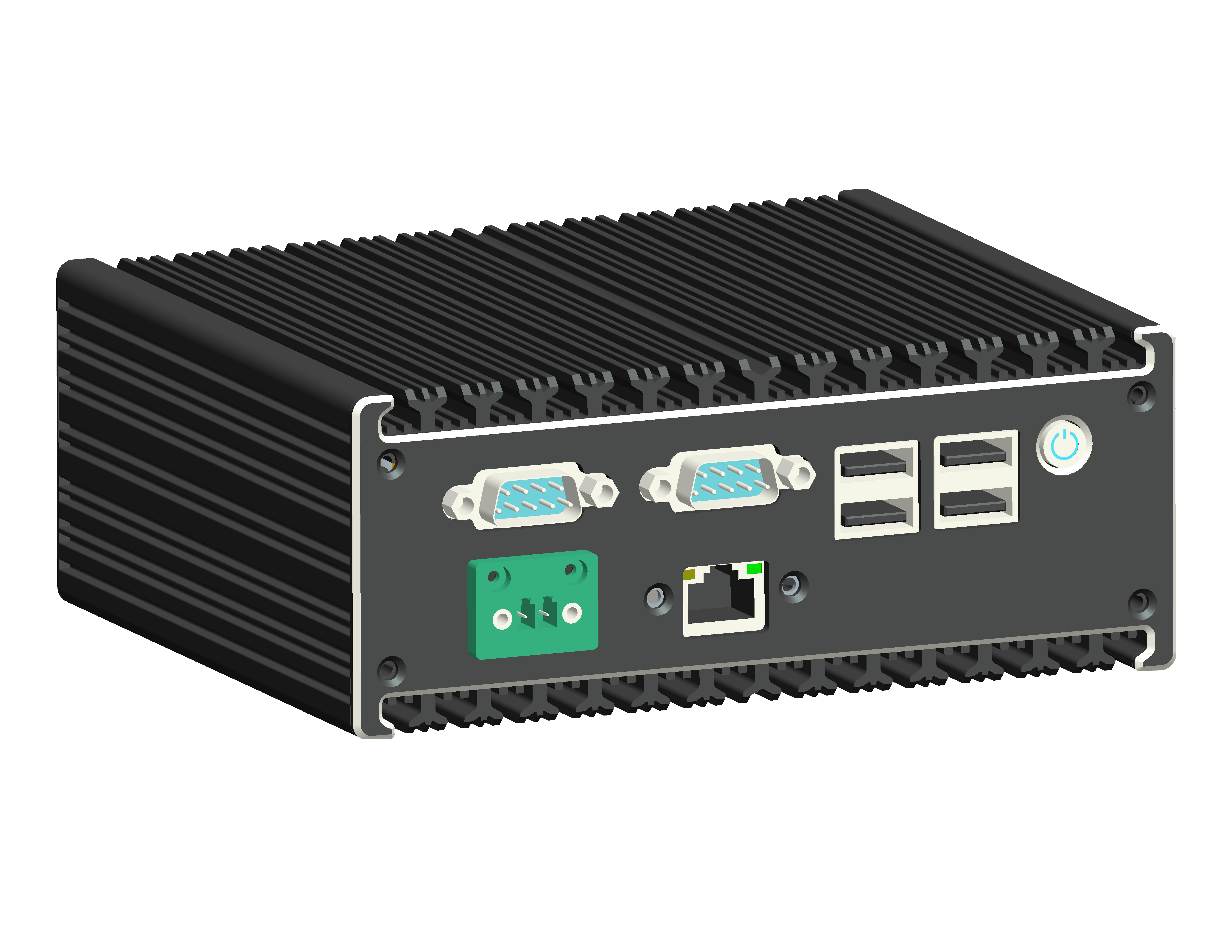

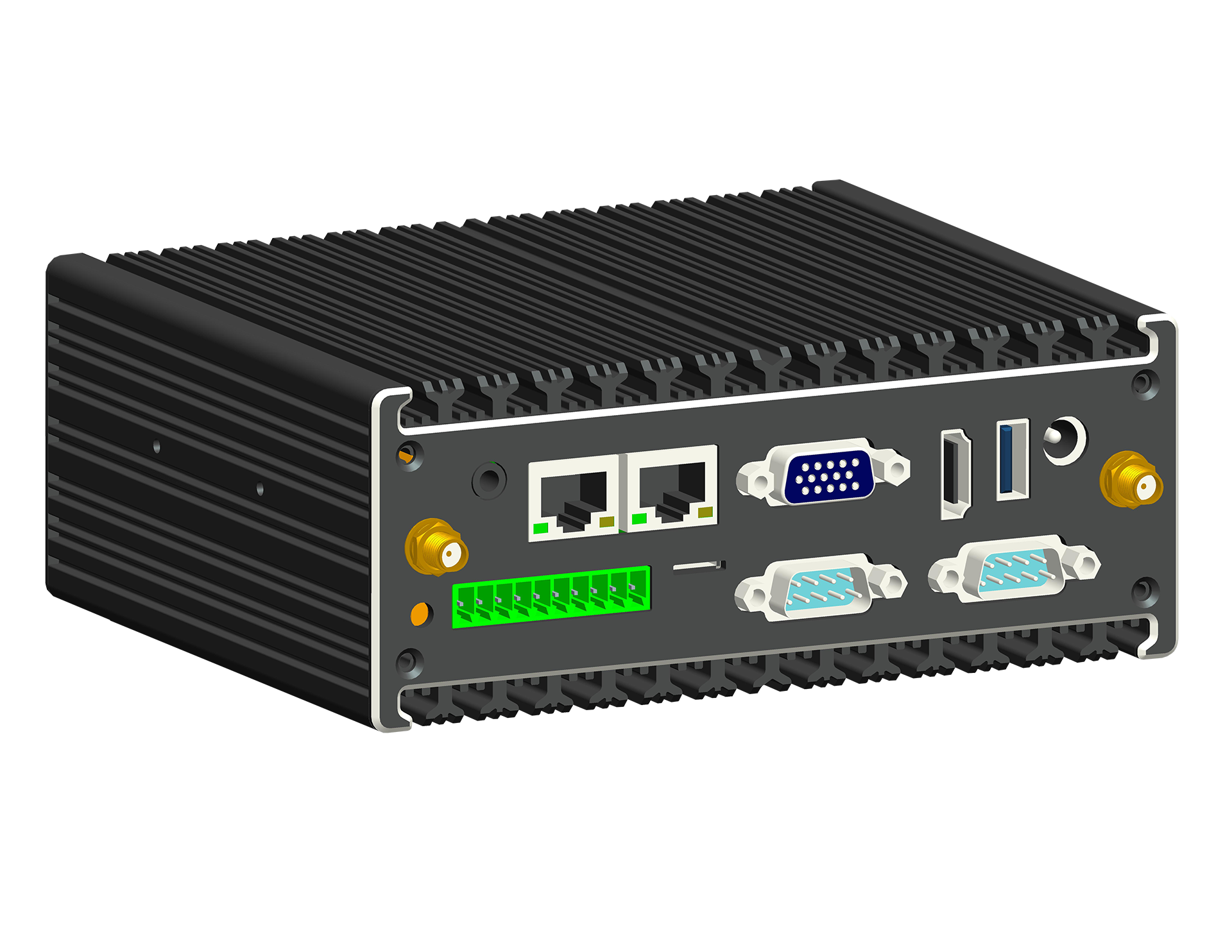

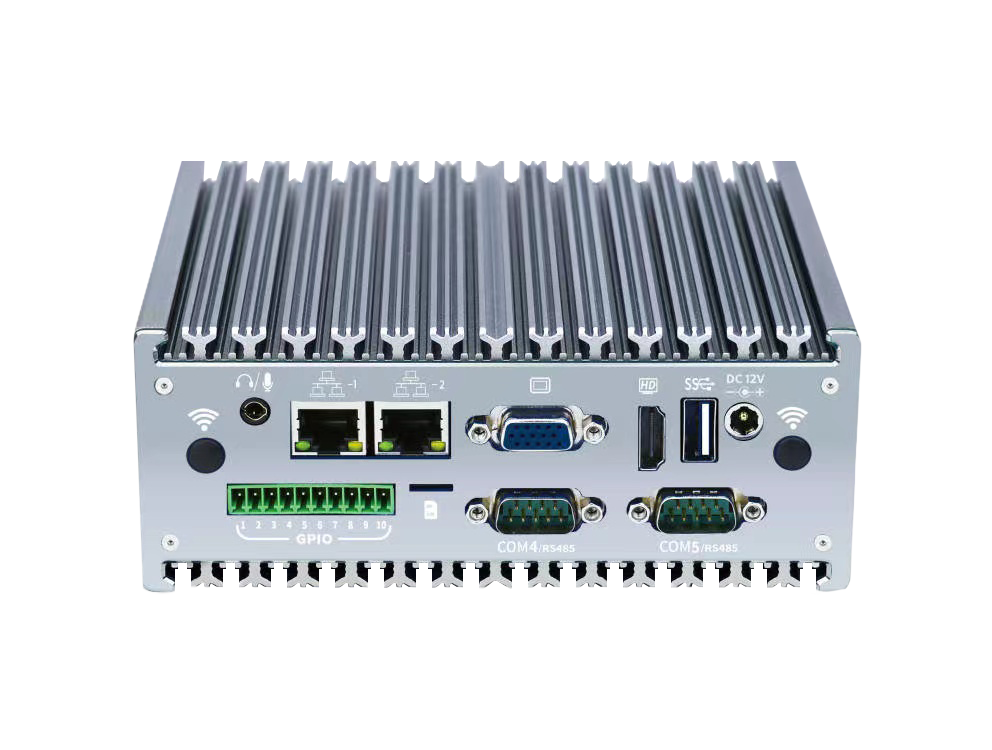

High performance, compact, fanless IPC box based on the popular Intel Celeron J1900 Quad Core.
The integrated Mini PCIe slots allow the user to expand the connection possibilities (Wi-Fi, Bluetooth, 4G, GPS) for easy integration into any Industry 4.0 application.
The optional Kreo Edge runtime is the natural integration of the product to develope complex and modular applications for the automation and control of industrial machinery.
The multi-video outputs (VGA and HDMI) combine the advantage of a stable industrial-grade PC box with an intelligent media player that can be widely used in digital signage, education, large LCD screen and traffic control applications.
LUMIA BOX
CPU | CPU Intel® Celeron J1900 Quad Core 2.00GHz Fanless |
BIOS | AMI UEFI BIOS |
RAM | 4GB DDR3L 1600MHz onboard |
SSD | 128G SSD 2.5" |
Graphic | Intel HD Graphics integrated |
VGA | 1*VGA max resolution 2048x1536 |
HDMI | 1*HDMI max resolution 1920x1080 |
USB | 4*USB2.0, 1*USB3.0 |
ETH | 3*LAN RJ45,Intel I211-AT Gigabit Ethernet Port |
COM | 2*COM, 2*SP RS232/485 |
GPIO | 8*GPIO, 4I/4O, Phoenix connector |
Mini-PCle | 2*Mini-PCIe socket, (Wi-Fi/Bluetooth/4G/GPS optional) |
mSATA | 1*mSATA socket |
Media | 1*Audio input/output |
Power Type | DC 8~32V |
Power consumption | 20W |
Working temperature | -20? ~ +60? |
Storage temperature | -40? ~ +85? |
Storage humidity | 0% ~ 95%(non-condensing) |
OS | Windows10/Linux |
Size | 148*125*58mm |
Weight | 1.2KG |
Certification | CE,ROHS |
