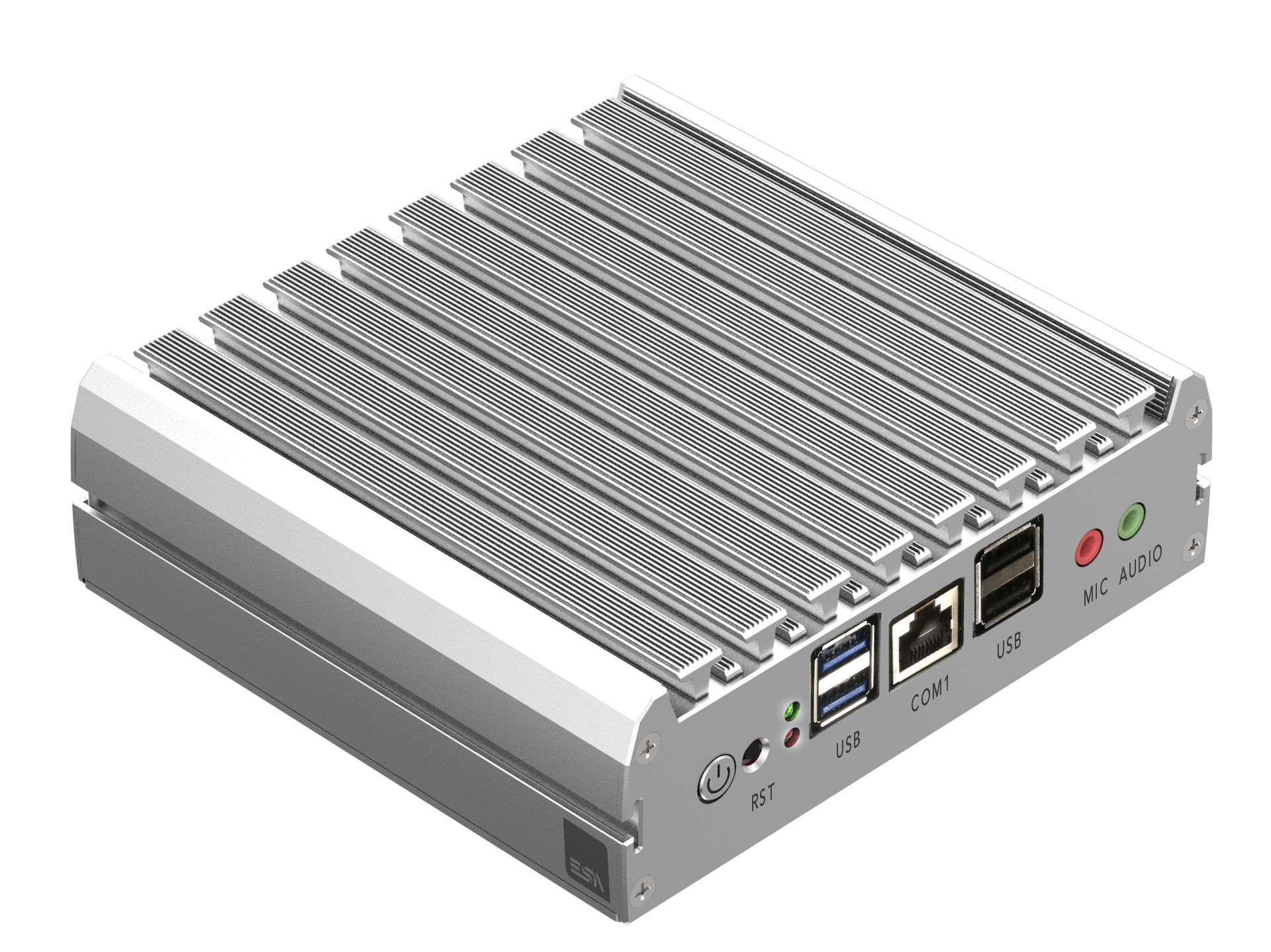

LUMIA Mini IPCCompact and High Performance

A new high performance, compact, fanless and cost effective box IPC equipped with the latest Apollo lake N4200 quad core processor.
Thanks to the multivideo output (VGA and HDMI) the product combines the advantage of a stable and industrial grade box PC with an intelligent multi media player wich can be widely used in digital signage, education, LCD large screen and traffic control application.
  • On board CPU – Apollo lake N4200
  • 1 DDR3 SODIMM 204 Socket – 4GB RAM
  • 1 mSATA 128GB SSD
  • On board 2 x Gigabit Ethernet LAN
  • On board HDA ALC662, provide MIC/LINE-OUT and Pin Header
  • 1 x Mini-PCIe slot
  • 4 x USB ports (2 x 2.0 and 2 x 3.0)
  • 1 x RS232 interface
  • HDMI and VGA video ooutput
  • Operating temperature: -20 ~ +60 °C
  • Storage temperature: -40 ~ +85 °C


Scarica pdf

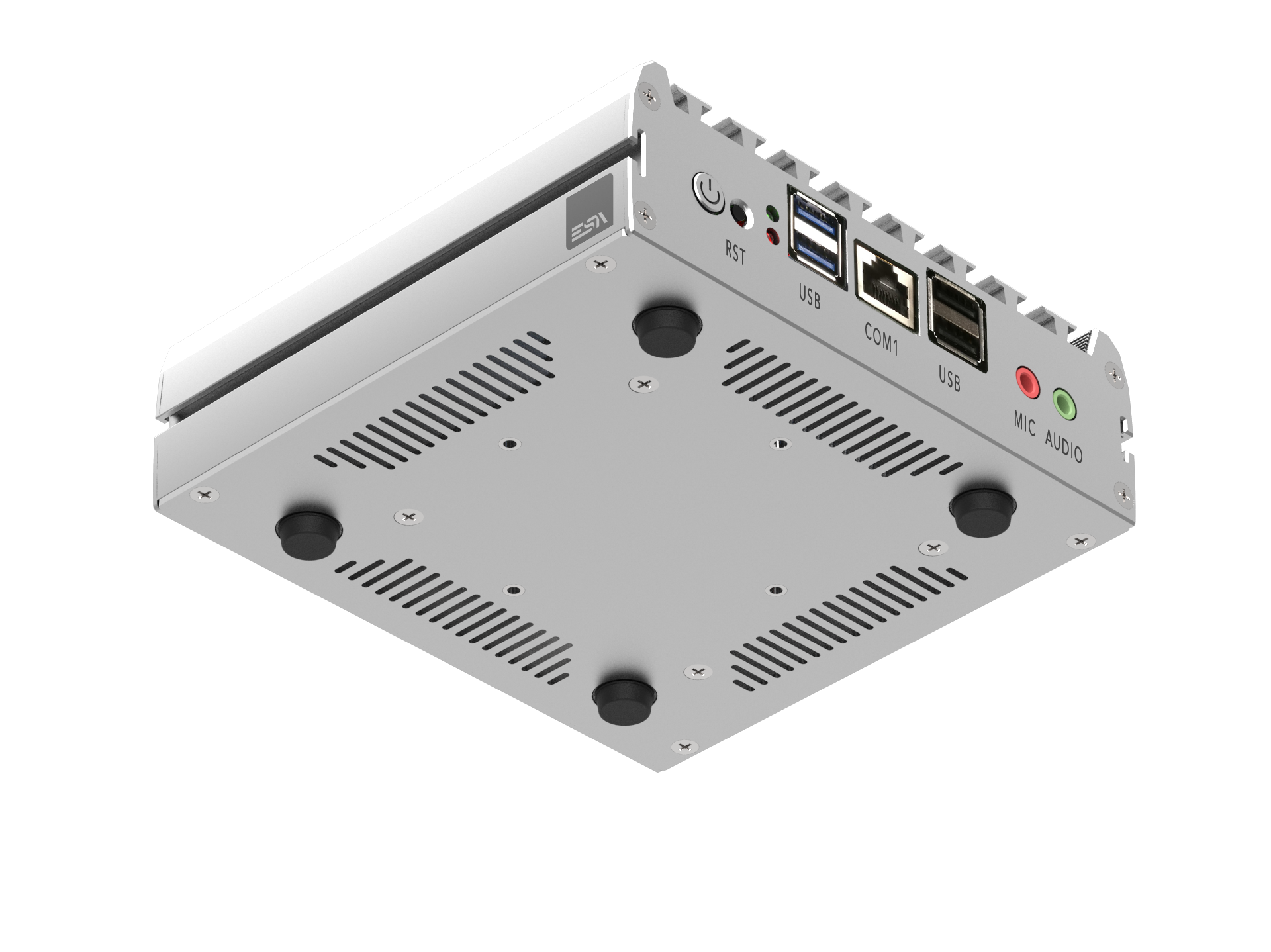

EnclosureHeavy alu extrusion chassis Alluminium heat-sink
1x power led 1x HDD access led
Lockable power connector Wall Mounting option
CPU fanlessApollo lake N4200 processor
ChipsetApollo lake single chip set
VideoHDMI: resolution up to 3840x2160 VGA: resolution up to 2048 x 1536
(Syncronour or Ayncronous dual display)
Intel HD graphics

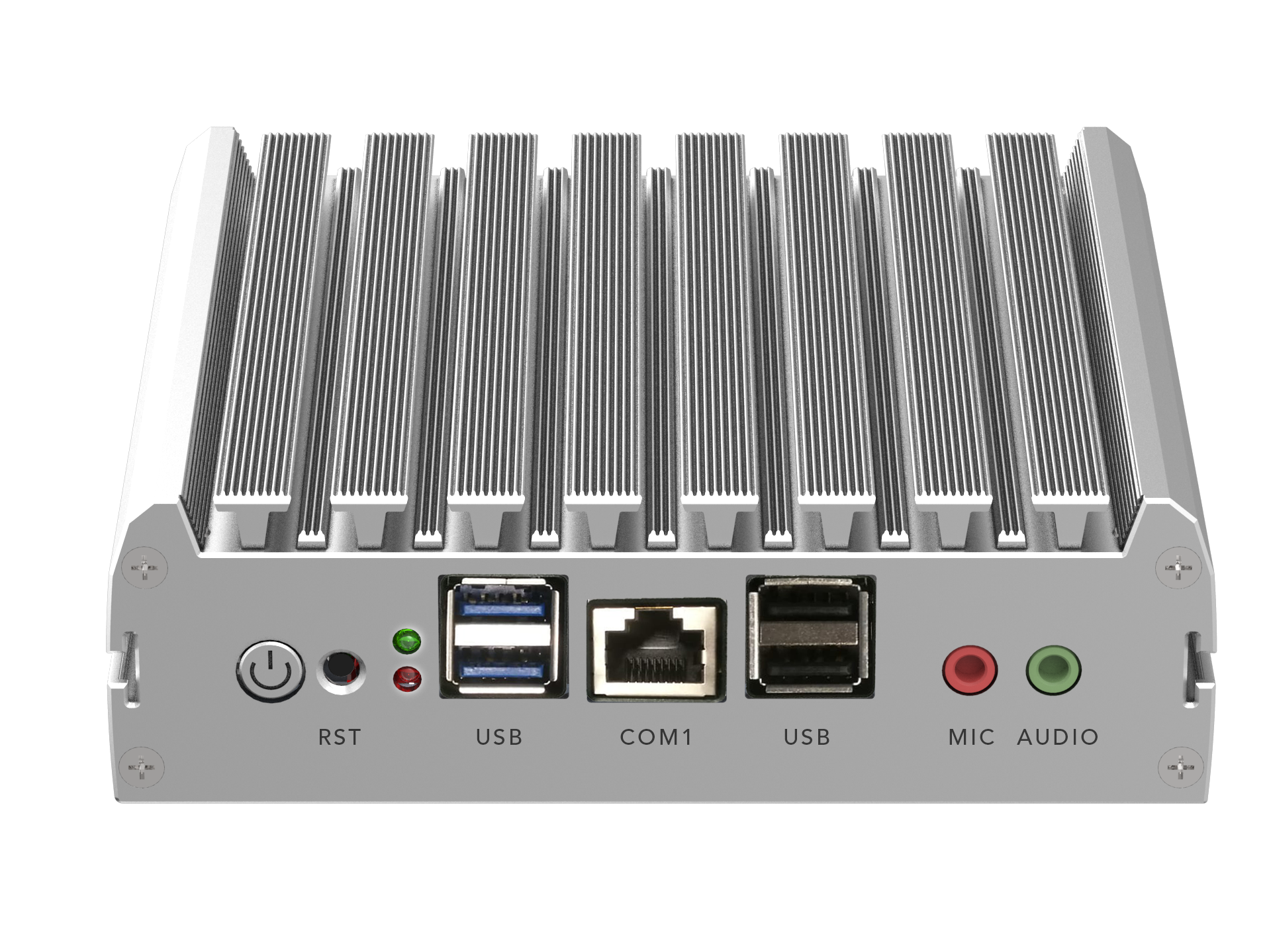

Front I/OUSB: 2 x USB2.0 – 2*USB 3.0 Max support +5V/1A
COM: 1 x RJ45 Port RS232
Audio: 1 x LINE OUT 1 x MIC

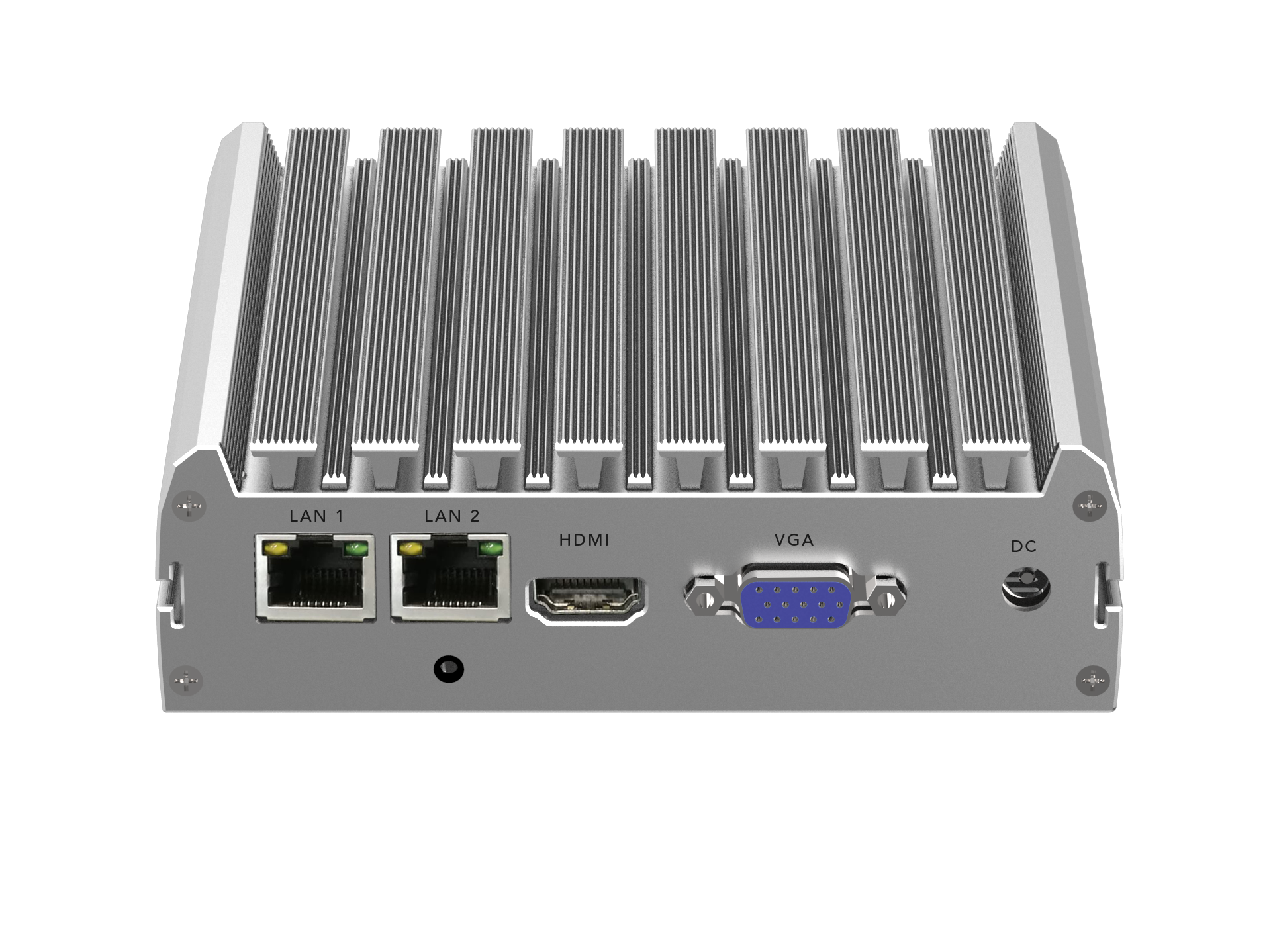

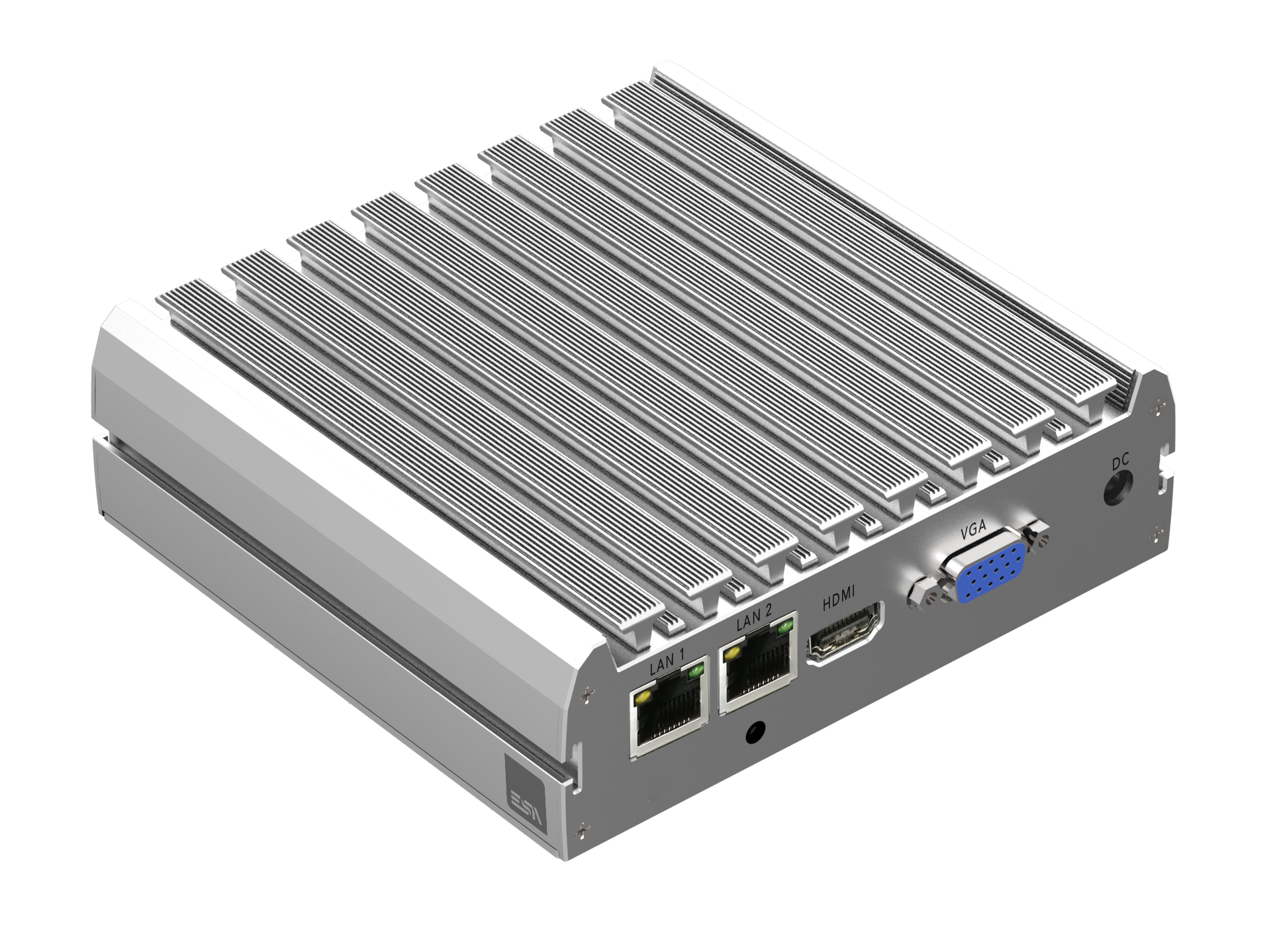

Rear I/OPower supply: 1 x DC
Video: 1 x VGA 1 x HDMI
Ethernet: 2 x LAN
Ethernet controller2 x Intel I211ATHigh Performance Gigabit LAN, RJ45 ports
Drives optionsmSATA: SSD 128GB
Expansion bus1 x Mini-PCIe slot
Operating systemW10 Enterprise LTSC 2019
64 bits
Operating temperature (°C)-20 .... +60
Storage temperature (°C)-40..+85
Humidity< 95% (non condensing)
Weight (kg)0.7
Power supply12 ~ 19 VDC (Power adapter 230Vac/12Vdc Included)
Dimensions (WxHxD)134mm x 126mm x 40,6mm
Protection degreeIP30
CertificationsCE, ROHS, FCC
