- Windows 10 operating system – Linux
- 10.1 “, 15.6”, 21.5 “, 27” inch high resolution and high brightness wide screen display
- Full glass front with capacitive touch
- Celeron QC J3455 entry level processor
- 7th generation Intel i3, i5 and i7 processor
- RAM up to 16GB
- Mass storage up to 1TB without moving parts (SSD)
- 2 x independent LANs
- 1 RS232 / RS485 serial Com port
- Up to 4 USB ports

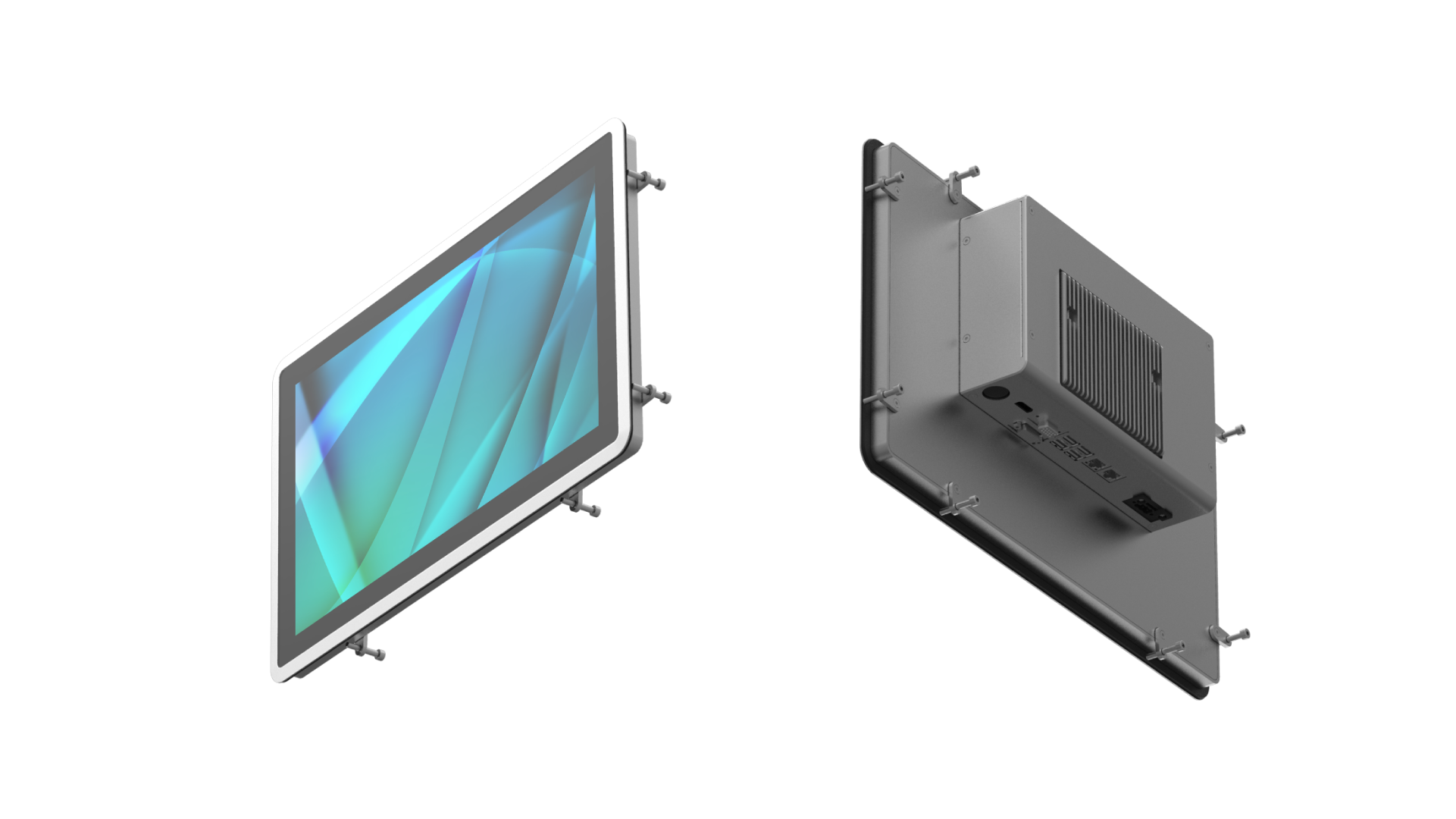

- Panel mounting with front IP66 protection level
- VESA mounting with all-around IP66 protection level
LUMIA Vesa IPCModular Solution
Wide range of panel PCs able to meet the requirements of industrial applications from the stand alone machine to the complete production line.
The flexibility in terms of assembly, hardware configuration and operating system allow the use in industrial, home automation and process control fields.
The use of the latest generation fanless processors ensures high performance and avoids the accumulation of dust, reducing the need for product maintenance.
The 2 independent LAN ports allows the separation between the machine network (OT) and the customer infrastructure (IT).
LUMIA IPC - Vesa Mounting
Download LUMIA Edge IPC.pdf
Download LUMIA Open IPC.pdf
| Embedded - HMI | Embedded - HMI + PLC | IPC | |
|---|---|---|---|
| O.S. | Linux Debian 10 | Linux Debian 10 + Raspbian OS | Windows 10 LTSC 2019 |
| Application software | Kreo HMI | Kreo HMI + | Kreo HMI |
| Codesys 3.x | |||
| Display Size | 10,1" (1280 x 800) | 10,1" (1280 x 800) | 10,1" (1280 x 800) |
| 15,6” (1366 x 768) | 15,6” (1366 x 768) | 15,6” (1366 x 768) | |
| 21,5” (1920x 1080) | 21,5” (1920x 1080) | 21,5” (1920x 1080) | |
| 27” (1920 x 1080) | 27” (1920 x 1080) | 27” (1920 x 1080) | |
| Display technology | TFT | TFT | TFT |
| Display Backlight | Led | Led | Led |
| Display Colors | 16M | 16M | 16M |
| Touch Technology | Capacitive | Capacitive | Capacitive |
| Bezel / Chassis | Aluminium | Aluminium | Aluminium |
| Processor - HMI | RK3399 | RK3399 | Celeron Quad Core J3455E – 2,3 GHz |
| Dual-core Cortex-A72 + Quad-core Cortex-A53 | Dual-core Cortex-A72 + Quad-core Cortex-A53 | Intel Core i3-7100U 2,4 GHz | |
| Intel Core i5-7300U 3,5 GHz | |||
| Intel Core i7-7600U 2,8 GHz | |||
| Processor - PLC | Broadcom BCM2711, Cortex A72 QC | ||
| Chipset | SoC | ||
| GPU | Celeron Quad Core J3455 - HD Graphics 500 | ||
| Intel Core i3-7100U – HD Graphics 620 – up to 1 GHz | |||
| Intel Core i5-7300U – HD Graphics 620 – up to 1 GHz | |||
| Intel Core i7-7600U – HD Graphics 620 – up to 1 GHz | |||
| RAM - HMI | 2G DDR4 | 2G DDR4 | Celeron Quad Core J3455 – 4GB DDR3L up to 8 GB DDR3L |
| Intel Core i3-7100U 2,4 GHz | |||
| Intel Core i5-7300U 3,5 GHz | |||
| Intel Core i7-7600U 2,8 GHz | |||
| 4GB up to 16 GB DDR4 | |||
| RAM - PLC | 4GB LPDDR4 | ||
| Mass storage - HMI | 16GB eMMC | 16GB eMMC | 256 GB SSD |
| 512GB SSD | |||
| 1TB SSD | |||
| Mass storage - PLC | 16GB micro SD | ||
| Ethernet Port - HMI | 1*1Gb+1*100Mb | 1*1Gb+1*100Mb | Celeron Q.C.J3455 –2x1Gb RJ45 Intel I211AT |
| Intel Core 7GEN - 2x 1Gb RJ45 | |||
| Intel I210AT/I219LM | |||
| Ethernet Port - PLC | 1*1Gb | ||
| Realtime fieldbus | Ethercat master | ||
| Wifi - HMI | 2,5 / 5 GHZ support (client) | ||
| Wifi - PLC | 2,5 / 5 GHZ support (client/hotspot) | ||
| COM Port | 1x RS232/RS485 | ||
| USB Port | 1xUSB3.0 + 1xUSB2.0 | 1xUSB3.0 + 1xUSB2.0 | Celeron QC J3455 – 2 x 3.1 |
| 2 x USB 3.0; 2 x USB 2.0 | Intel Core 7th GEN – 4 x 3.0 | ||
| Power Supply (Vdc) | 12 – 32V DC | ||
| Consumption (W) | 12W 10,1” | 14W 10,1” | 30W 10,1” |
| 18W 15,6” | 20W 15,6” | 35W 15,6” | |
| 28W 21” | 30W 21” | 50W 21” | |
| 28W 27” | 30W 27” | 50W 27” | |
| Operating Temperature (°C) | 0 … + 50 °C | ||
| Storage Temperature (°C) | -20 … + 60 °C | ||
| Humidity | <90% (non condensing) | ||
| External dimensions(W/H/D) (mm) | 10” panel - 269 x 190 x 42 | 10” panel - 269 x 190 x 67.3 | 10” panel 69 x 190 x 42 |
| 10” vesa 250.6 x 171.6 x40,2 | |||
| 15” panel - 402.4 x 251.7 x 45 | 15” panel - 402.4 x 251.7 x 70.3 | 15” panel - 402.4 x 251.7 x 45 | |
| 15” vesa - 381 x 231.3 x 59.3 | 15” vesa - 381 x 231.3 x 59.3 | 15” vesa 382 x 230.8 x 80.7 | |
| 21,5” panel 546.4 x 337.9 x 50.5 | 21,5” panel 546.4 x 337.9 x 75.75 | 21,5” panel 546.4 x 337.9 x 73 | |
| 21.5” vesa 527.2 x 318.7 x 62 | 21.5” vesa 527.2 x 318.7 x 62 | 21.5” vesa 527.2 x 318.7 x 83 | |
| 27” vesa 648,4x 385,5 x 85 | |||
| 27” vesa | 27” panel 669 x 406 x 75.75 | 27” panel 669 x 406 x 73 | |
| 27” vesa 648,4x 385,5 x 62 | 27” vesa 648,4x 385,5 x 62 | 27” vesa 648,4x 385,5 x 83 | |
| 27” panel 683 x 420 x 70 | |||
| Cut-out dimensions (W/H) (mm) | 10” panel - 258.5 x 179.5 | 10” panel - 258.5 x 179.5 | 10” panel - 258.5 x 179.5 |
| 15” panel - 390 x 239 | 15” panel - 390 x 239 | 15” panel - 390 x 239 | |
| 21” 531 x 323 | 21” 531 x 323 | 21” 531 x 323 | |
| 27” 652 x 389 | 27” 652 x 389 | 27” 652 x 389 | |
| Weight (kg) | 10” 5 | 10” 5 | 10” 5 |
| 15” 6,5 | 15” 6,5 | 15” 6,5 | |
| 21,5 8KG | 21,5 8KG | 21,5 8KG | |
| 27” 10Kg | 27” 10Kg | 27” 10Kg | |
| Protection degree | Panel – IP66 front | Panel – IP66 front | Panel – IP66 front |
| Vesa – IP66 all around | Vesa – IP66 all around | Vesa – IP66 all around | |
| CE - RED (2014/53/EU): | CE - RED (2014/53/EU): | CE | |
| Safety: EN 62368-1:2020 + A11:2020 | Safety: EN 62368-1:2020 + A11:2020 | UL/ATEX/DNV available soon | |
| Health: EN 62479:2010 | Health: EN 62479:2010 | ||
| EMC: ETSI EN 301 489-1 V2.2.3 (2019-11) | EMC: ETSI EN 301 489-1 V2.2.3 (2019-11) | ||
| ETSI EN 301 489-17 V3.2.4 (2020-09) | ETSI EN 301 489-17 V3.2.4 (2020-09) | ||
| Radio: ETSI EN 300 328 V2.2.2, ETSI EN 301 893 V2.1.1 (2017-05) | Radio: ETSI EN 300 328 V2.2.2, ETSI EN 301 893 V2.1.1 (2017-05) | ||
| UL/ATEX/DNV available soon | UL/ATEX/DNV available soon |
