LUMIA PLCMotion Control

LUMIA1BOX is ESA's new compact product that integrates all the functionalities necessary to control a machine; moreover, in combination with an edgeHMI of the LUMIA series, it allows to develope a completely web-based application compliant with the Industry 4.0 standard.

What you can do with a Lumia1box:
Fully control the machine cyclic with an application compliant with the standard IEC 61131.
Use the Codesys 3.5 development environment that has become a de facto market standard.
Manage the different axes according to PLC Open Part 1 and Part 2 using the ESA Motion Control library.
Connect remote devices via different high-performance fieldbuses (Ethercat, Profinet, Ethernet Ip, Modbus TCP).
The programming of the operating parameters is extremely simple through the ESA Control Panel web application that can be managed with a simple HTML5 browser.
  • Raspbian operating system
  • Processor fanless 4 core Cortex A72
  • Integrated Wifi client ed hotspot (2,5 GHz – 5 GHz)

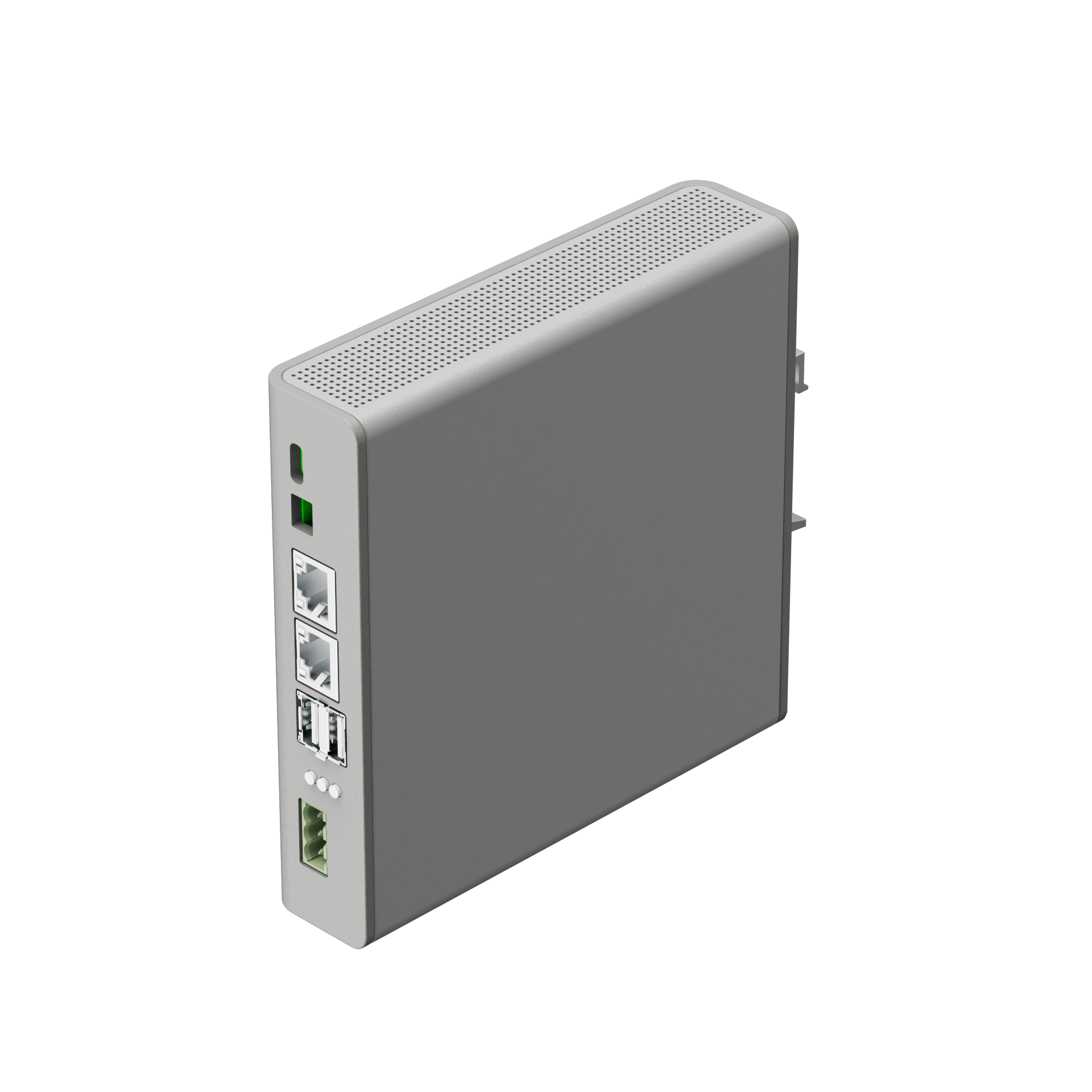

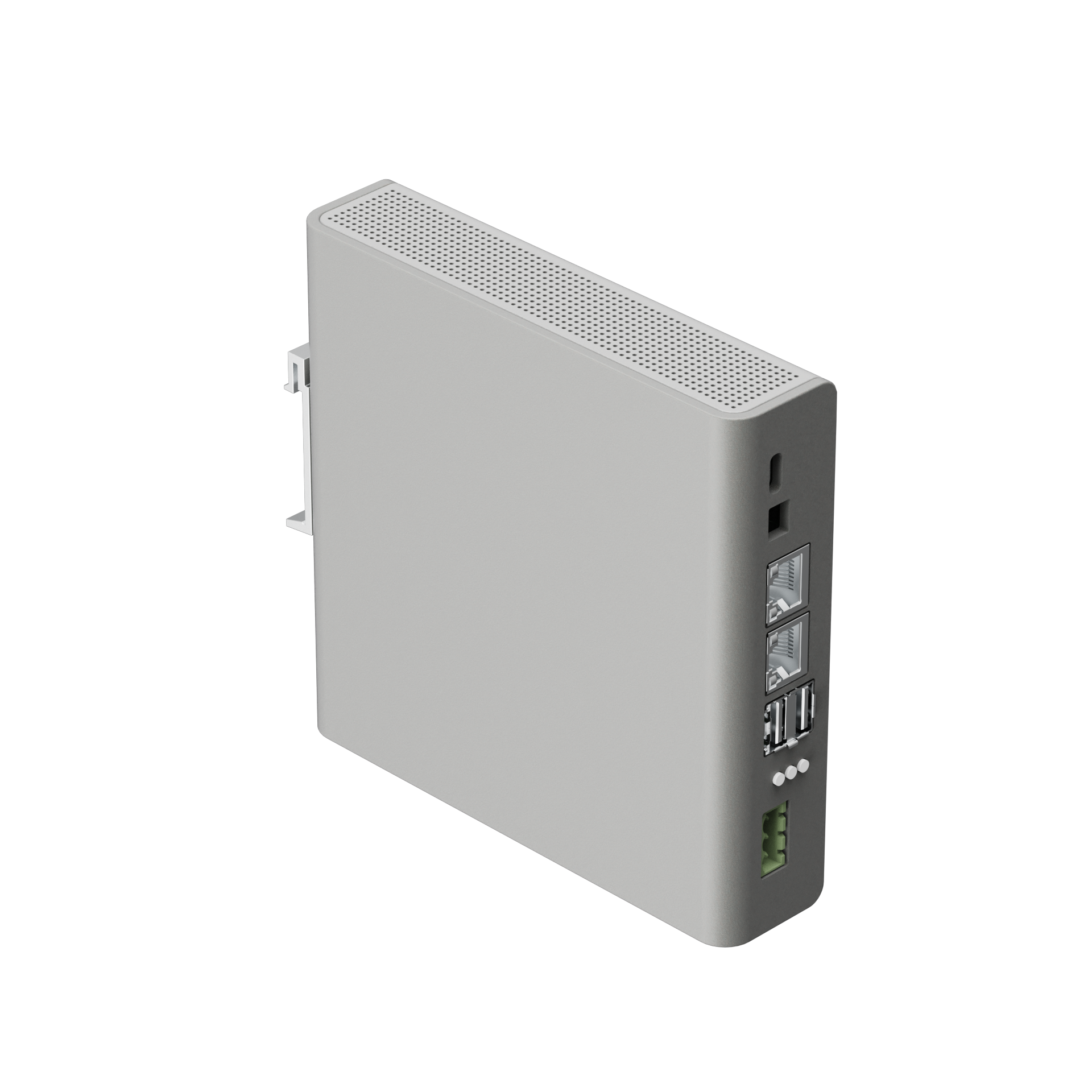

  • 2 x LAN ports
  • 2 x USB ports (2.0 and 3.0)
  • RAM 2GB
  • Internal memory 16GB

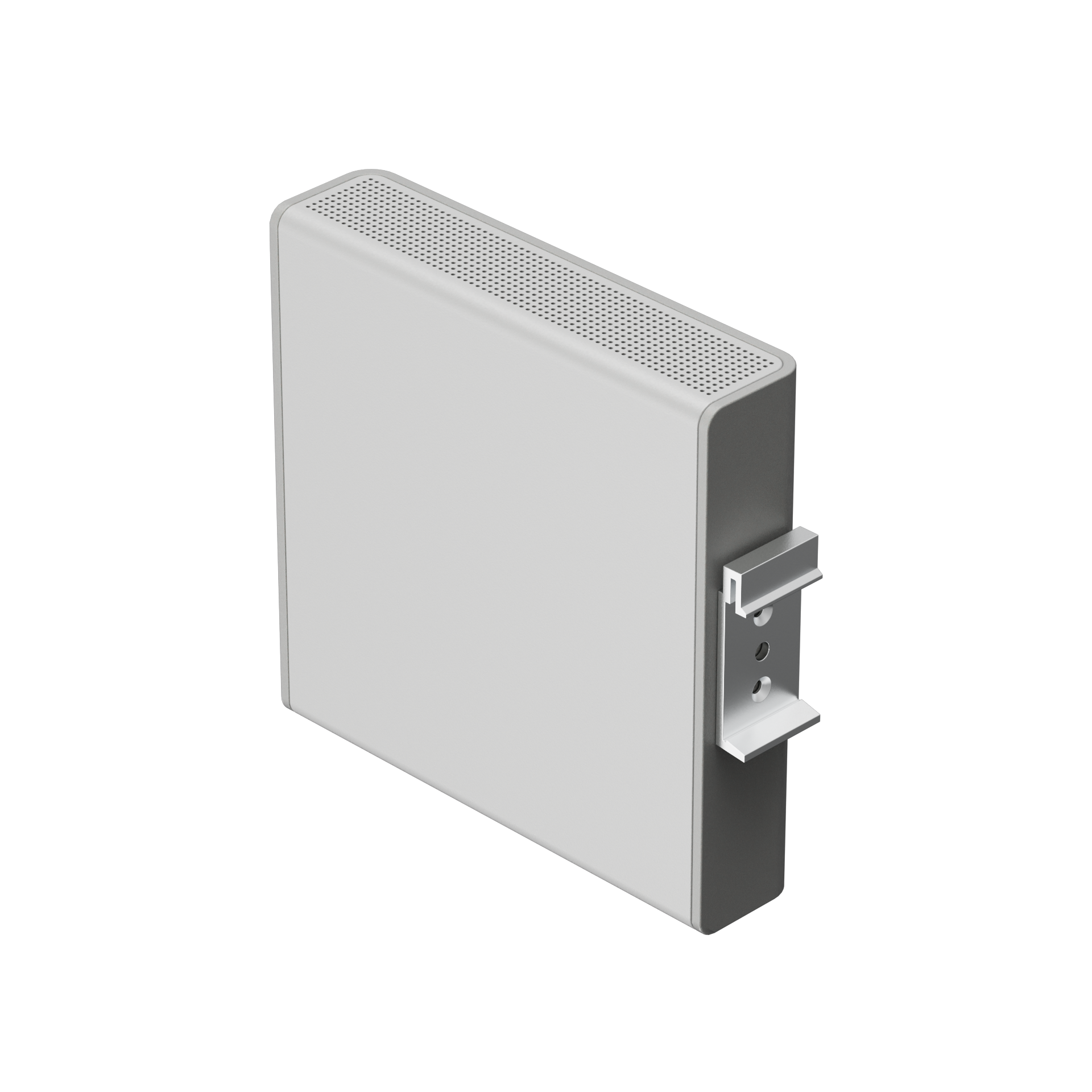

  • DIN rail mounting
  • Codesys runtime 3.5
  • Library dedicated to motion control ESA MC
  • Ethercat, Profinet, Ethernet Ip, Modbus TCP fieldbuses

LUMIA PLC

Download pdf

LUMIA1BOX
O.S.Raspbian Linux
Application softwareCodesys IEC 61131
Real time FieldbusEthercat
Bezel / ChassisAlluminium
Processor - HMIQuad-core Cortex A72 (ARM v8)
64-bit SoC @ 1.5 GHz
RAM2G DDR4
Mass storage8GB eMMC
Ethernet Port1*1Gb+1*100Mb
Wifi2,5 / 5 GHz (client & hotspot)
USB Port1xUSB3.0 + 1xUSB2.0
Power Supply (Vdc)24 (12 – 32)V DC – Class 2
Consumption (W)6 W
Operating Temperature (°C)0 … + 50 °C
Storage Temperature (°C)-20 … + 60 °C
Humidity<90% (non condensing)
External dimensions(W/H/D) (mm)
30/145/140
Weight (kg)2,5 kg
Protection degreeIP20
CertificationsCE - RED (2014/53/EU):
Safety: EN 62368-1:2018,
EN 62311:2008
EMC: ETSI EN 301 489-1 V2.2.3:2019
ETSI EN 301 489-17 V3.1.1: 2017
Radio: ETSI EN 300 328 V2.2.2:2019, EN 301 893 V2.1.1:2017
UL
