LUMIA71212,2" Rugged Tablet
Windows

Fully rugged, fanless W10 based tablet with outdoor display.

The ESA Lumia 712 rugged tablet product line is ideal for higly mobile indoor or outdoor workers in harsh enviroment conditions. Thanks to its capacitive multitouch and sunlight viewable display this W10 based device can be used in the field to ensure data is always available when needed.

  • Fully rugged IP65 (Water-Dust resistant), MIL-STD810G (vibration/shock/80 cm drop reistant), Fanless device
  • 12” inch screen Glove touch, Rain Touch, finger&pen touch enabled
  • 8 hours operation battery life with 100% charging in less then 2.5 hours
  • Battery hotswap wich enables NON-STOP working
  • Light weight (1500g)
  • Power adapter included

LUMIA 712 CH

Download pdf

LUMIA712CH12W00 - LUMIA712CH12WR0 (+ 2D BAR CODE)
Product FormType12.2"
Dimension319.6*216*23.4 mm
Weight1500g
LCDScreen Size12.2"
Resolution1920*1200
Brightness280Nit
TPTouch Panel10 point capacitive,Glass+Glass,Rigidity: 7H above, anti-scratch,
CameraFront2.0MP
Rear5.0MP
SpeakerBuilt-inbuilt-in 8Ω/0.8W water-proof speaker x2
MicBuilt-insensivity:-42db, Output resistance:2.2kΩ
BatteryTypeLithium-ion polymer, removable
Capacity3.7V/12600mAh
Endurance8Hrs
CPUTypeIntel Cherrytrail Z8350
Speed1.44Ghz-1.92GHz
RAMDDR3L4GB
ROM Emmc128GB
G_sensorBuilt-ingravity sensor
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI
BluetoothBuilt-inclass1 transmission distance:10m
4GBuilt-inEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
GPSBuilt-inCapture sensitivity: -160 dBm;frequency:0.25 Hz … 10 MHz
TF slotExtensive External MemoryTF x1 max:128G
SIM card slot3G/4G communicationSIM card x1

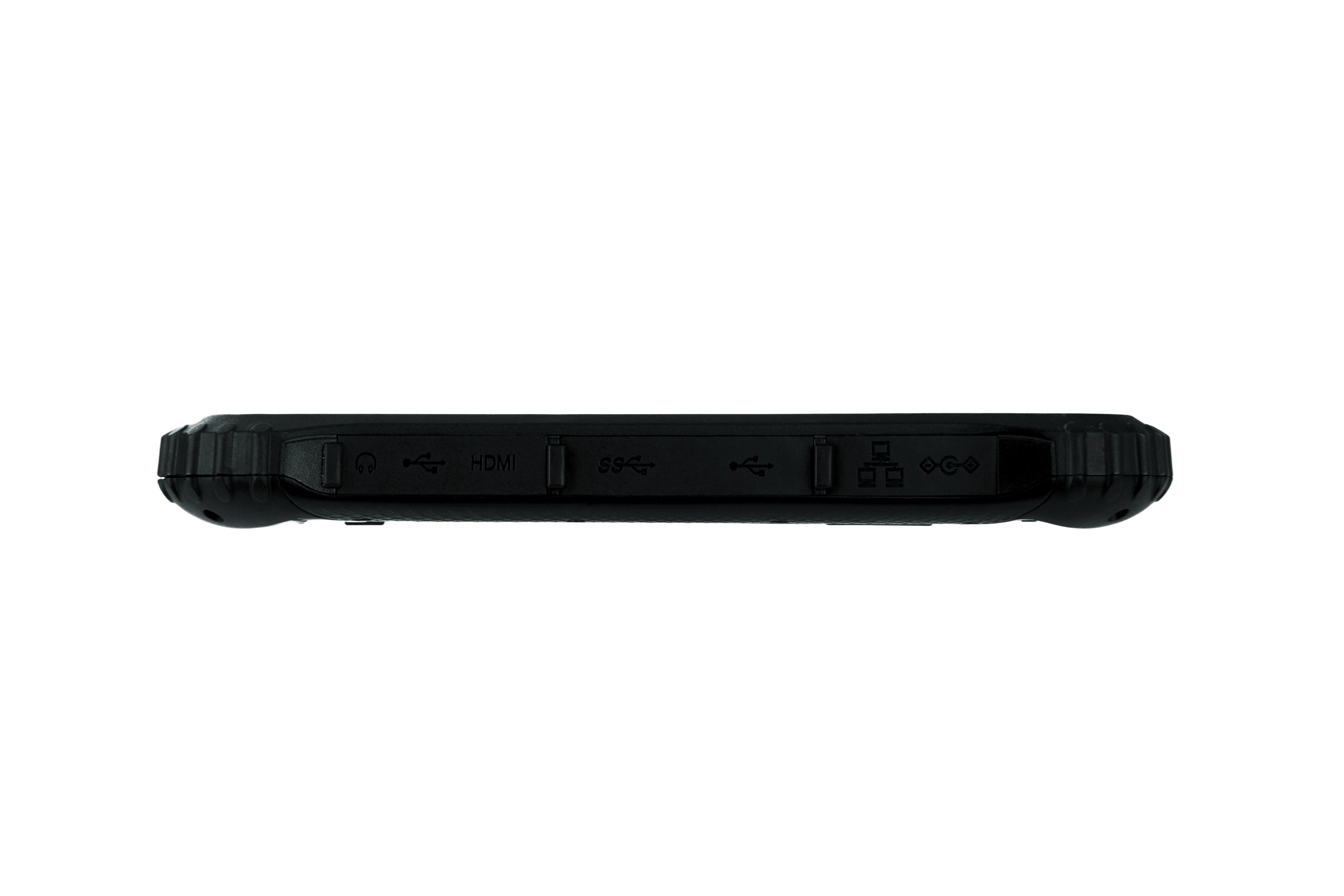

USB connectorExtensive external memory and data transferUSB 2.0*2 (4pin) Host
USB 3.0*1
MICRO USB connectorUSB2.0 MICRO USB x1
Earphone JackAudio Output∮3.5mm standard earphone jack x1
DC JackPowerDC 5V 3A ∮3.5mm power adaptor x1
HDMI Video OutputHDMI 1.4a x1

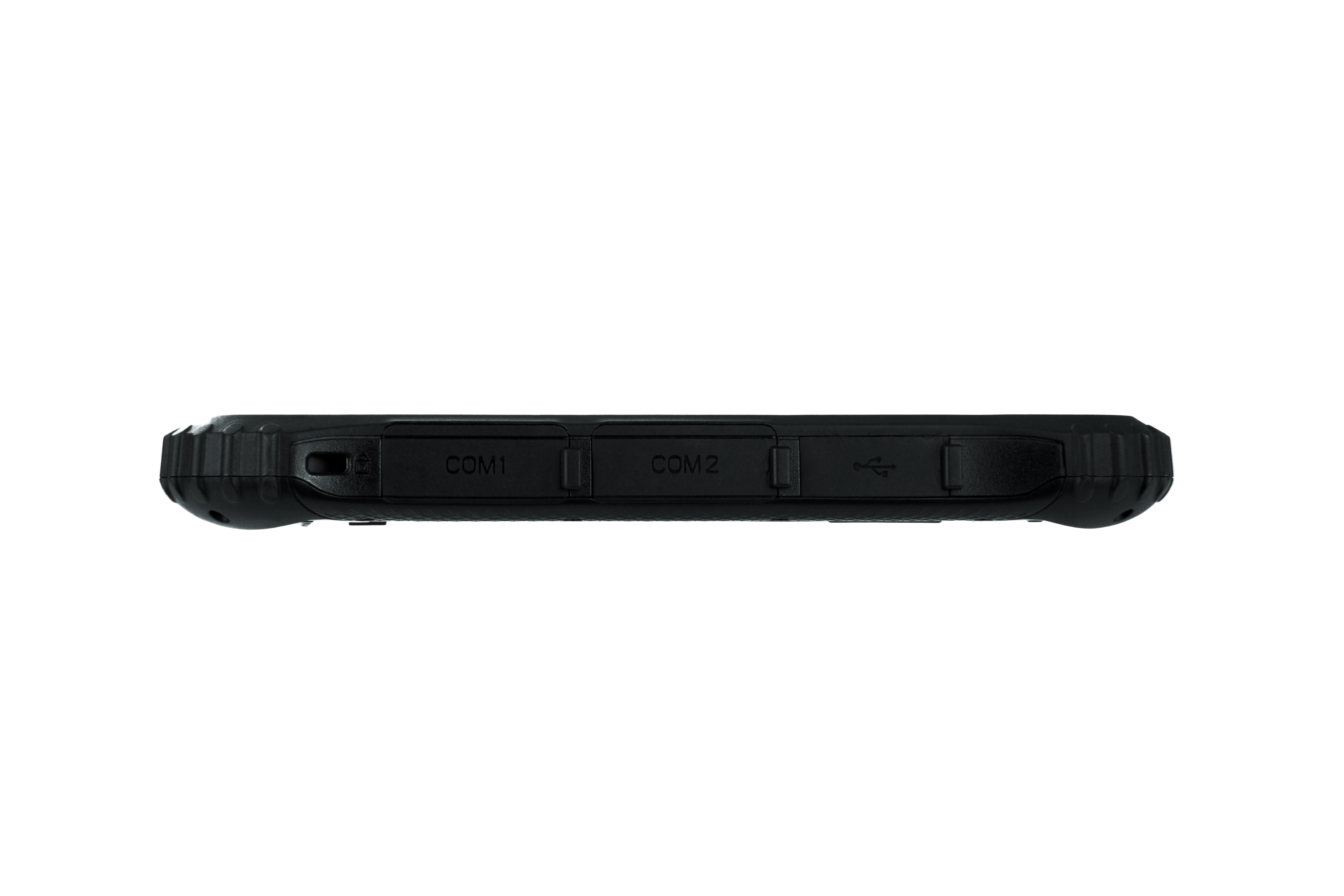

Serial port connectorSerial Port DB9 (RS232) ×1 DB9 (RS485) ×1
RJ45 connectorEthernet port10/100Mbps ×1

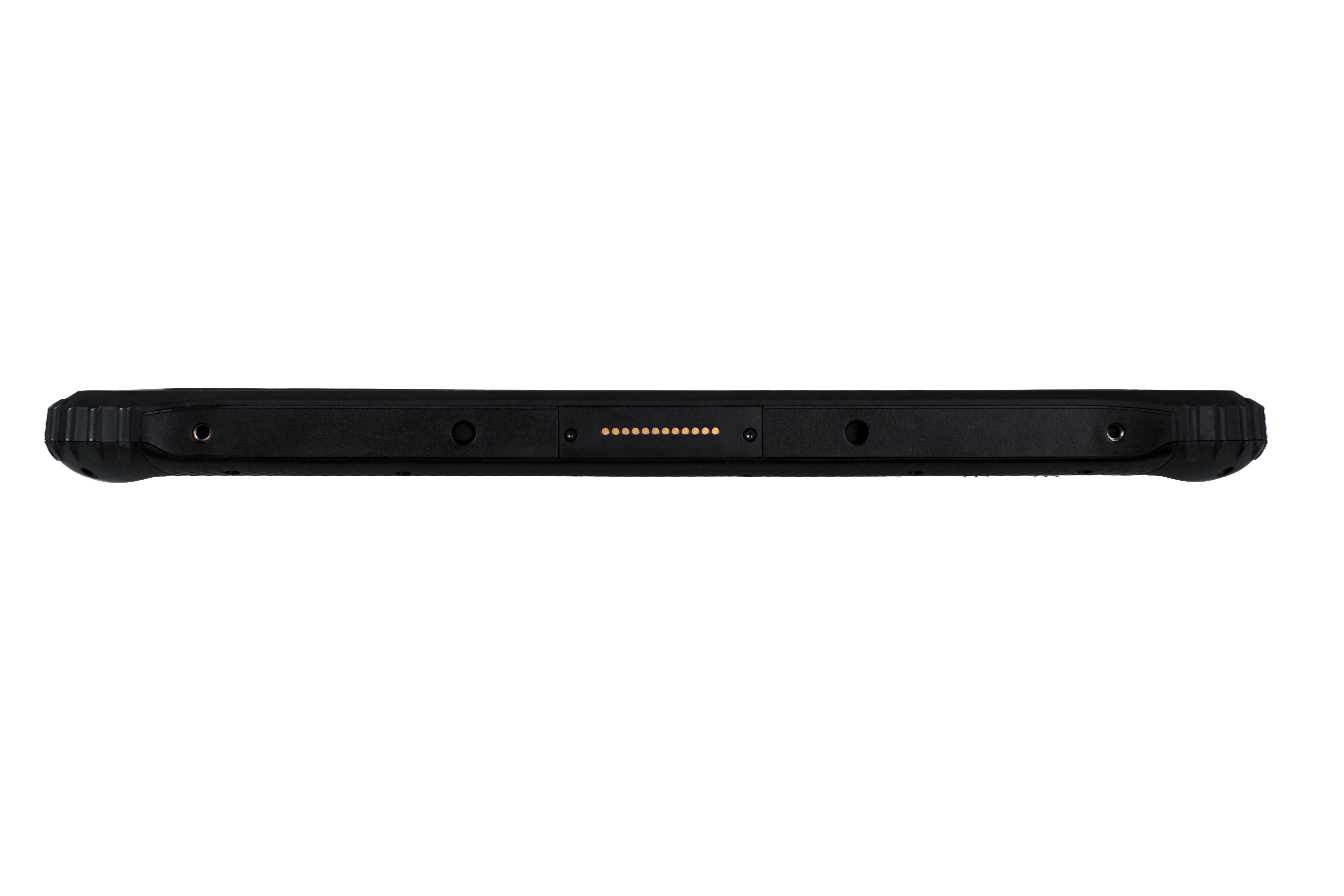

Extensive connectorpogo Pin12pin Pogo Pin x1

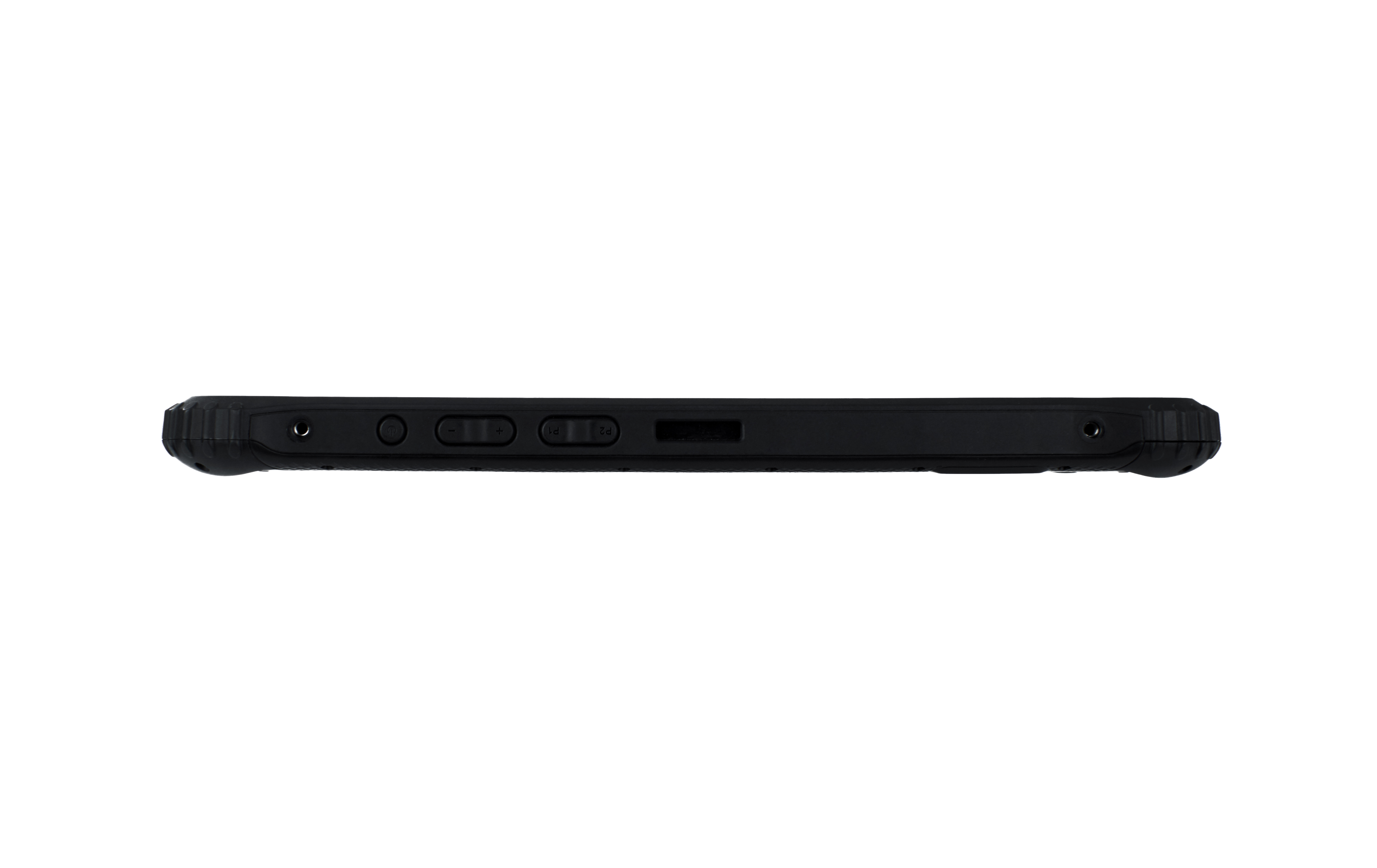

powerOn/Off x1
volumevolume up/volume downvolume+- x2
F KEYScannerCode scanner(back of unit) x1
programProgram KeySelf define key x2
Operation SystemOS versionWindows 10 IOT English;
Certificate SystemIP65IP65
CEY
MIL-STD-810GY
BatteryUN38.3,MSDS,IEC62133
Product ReliabilityDrop Height80cm
Operate Temperature‘-10 °C to 50 °C
Store Temperature’-20 °C to 60 °C
HumidityHumidity: 95% Non-Condensing

Lumia 712 SK

Download pdf

LUMIA712SK22W00 LUMIA712SK22WR0 (+ 2D BAR CODE)
Product FormTypeRugged Tablet
Dimension319,6x216x23,4 mm
Weight1500g
LCDScreen Size12,2"
Resolution1920x1200
Brightness280 cd/m2
TPTouch Panel10 points Capacitive, Glass+Glass, Rigidity: above 7H-Anti-scratch
CameraFront2.0MP
Rear5.0MP
SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x 1
MicSensitivity:-42db, Output resistance:2.2kΩ
BatteryTypeLithium-ion polymer battery , removable
Capacity7.4V/6300mAh
Endurance6hrs
CPUTypeIntel® Skylake M3-6Y30
Speed2.20 GHz
RAMDDR3L8GB
SSDNGFF SSD128GB
G_sensorBuilt-inGravity acceleration sensor
WIFIWIFI ModuleWIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v)
BluetoothBuilt-inBT4.2 (BLE) class1 transmited distance:10m
4GBuilt-inEC25-EC
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
GPSBuilt-inU-blox NEO-7,Support:GPS; Capture sensitivity:-160 dBm;Cool Start Time:<50 second,Hot start time:<28 second,Frequency:0.25 Hz … 10 MHz (configurable)
TF SlotExtensive External MemorySupport TF x1 max:128G
SIM SlotSIM SlotSIM x1
Micro usbUSB2.0USB 2.0 x1
type A usbUSB3.0USB 3.0 x1
DC JackPowerDC 12V 4A ∮4.0mm Power connector x1
Earphone JackAudio OutputØ3.5mm Standard Earphone Jack x1
HDMI JackAudio&Video OutputHDMI 1.4a Type C x1
Extensive SlotPogo Pin12pin Pogo Pin x1
DB9 PORTSerial portx1 (RS232) TTL Electrical Level
RJ45 PORTEthernet portx1 (10/100 Self-adaption)
Operating SystemOS versionwindows 10 IoT English
Certificate SystemIP65IP65
CEYES
MIL-STD-810GYES
CCCYES
BatteryUN3803,MSDS,IEC62133,Aviation, Ocean shipping reports
Product ReliabilityDrop Height80cm
Operate Temperature‘-10 °C to 50 °C
Store Temperature’-20 °C to 60 °C
HumidityHumidity: 95% Non-Condensing
